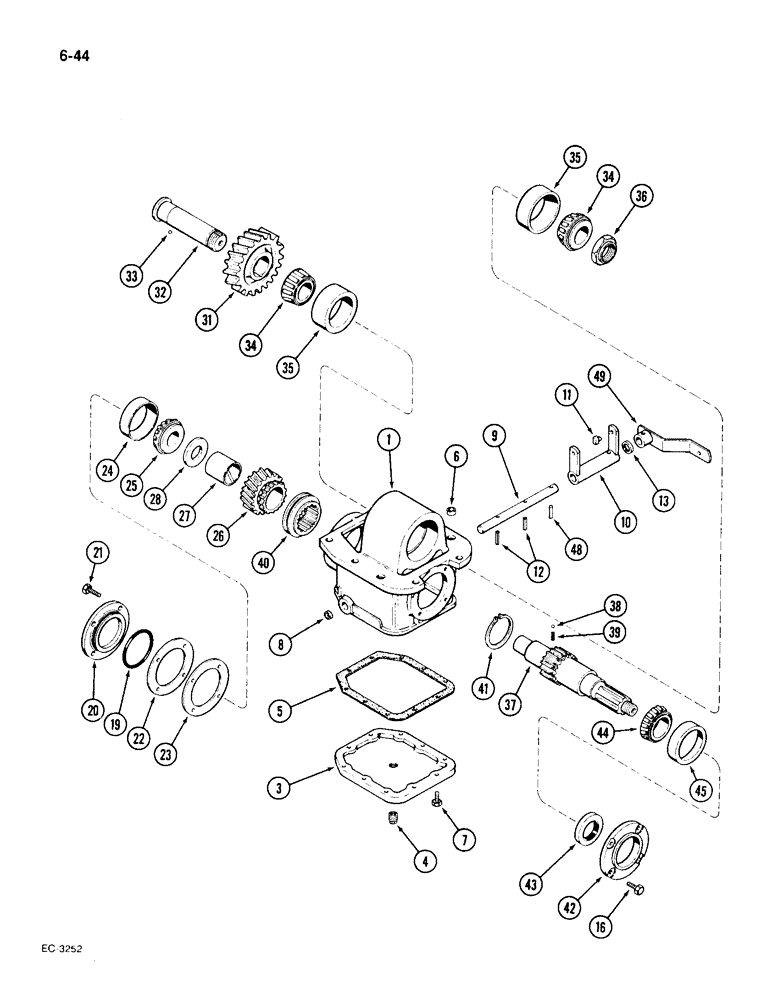

Запчасти Case IH 1896 (6-44) - TRANSFER GEARBOX, MFD TRACTORS (06) - POWER TRAIN

A179665

GEARBOX ASSY

GEARBOX ASSEMBLY - transfer, Includes: Ref. 1 - 45

1шт.

1

A168844

HOUSING

- transfer gearbox

1шт.

3

A156588

COVER

- gearbox, bottom

1шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

1шт.

5

1342799C1

GASKET

- gearbox cover (Replaces A157216)

1шт.

6

A156567

PIN

RING - dowel

2шт.

7

813-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm x 20 mm, class 8.8

10шт.

8

A157155

PLUG

- cup, rail bore

1шт.

9

A156582

RAIL

- shift fork

1шт.

10

A156580

FORK

- shifting

1шт.

11

A156581

PAD

FINGER - shift fork

2шт.

12

138-2053

PIN,1/4" x 1 1/4", Coiled

2шт.

13

A157101

OIL SEAL

- oil, rail bore

1шт.

16

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm x 25 mm, class 8.8

4шт.

19

G104038

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

- rear cover

1шт.

20

A179683

COVER

- gearbox, rear

1шт.

21

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm x 25 mm, class 8.8

4шт.

22

A156587

SHIM

- rear cover, 0.002 inch

1шт.

23

A156586

SHIM

- rear cover, 0.005 inch

1шт.

24

A138433

BEARING CUP

CUP - bearing, output shaft, rear

1шт.

25

A156596

ROLLER BEARING,1.625" ID x 1.1563"

CONE - bearing, output shaft, rear

1шт.

26

A168848

GEAR

ASSEMBLY - output (22 teeth), Includes: Ref. 27

1шт.

27

A156575

BUSHING

- output gear

1шт.

28

A179682

WASHER

- thrust, output shaft

1шт.

31

A168847

GEAR

- idler (32 teeth)

1шт.

32

A157332

SHAFT

- idler

1шт.

33

211-7

BALL,1/4" Dia

- detent 1/4" Dia

1шт.

34

40436

ROLLER BEARING,1.9375" ID x 1.751"

CONE - bearing, idler shaft

2шт.

35

NNA40435

BEARING CUP,103.2mm OD x 36.51mm W

CUP - bearing, idler shaft

2шт.

36

A156571

NUT

- adjusting, bearing

1шт.

37

A156572

SHAFT

- output

1шт.

38

211-7

BALL,1/4" Dia

- detent 1/4" Dia

3шт.

39

A156579

SPRING

- detent

3шт.

40

A156578

COLLAR

- shifting

1шт.

41

A157130

RING

- retaining

1шт.

42

1536626C1

COVER

- gearbox, front (Replaces A156585)

1шт.

43

A156577

OIL SEAL

- oil, output shaft

1шт.

44

S113921

TAPERED BEARING

CONE - bearing, output shaft, front

1шт.

45

A138433

BEARING CUP

CUP - bearing, output shaft, front

1шт.

48

A157229

SPLIT PIN/SAFETY PIN

PIN - groove, lever retaining

1шт.

49

A156583

LEVER

- shift, external

1шт.
