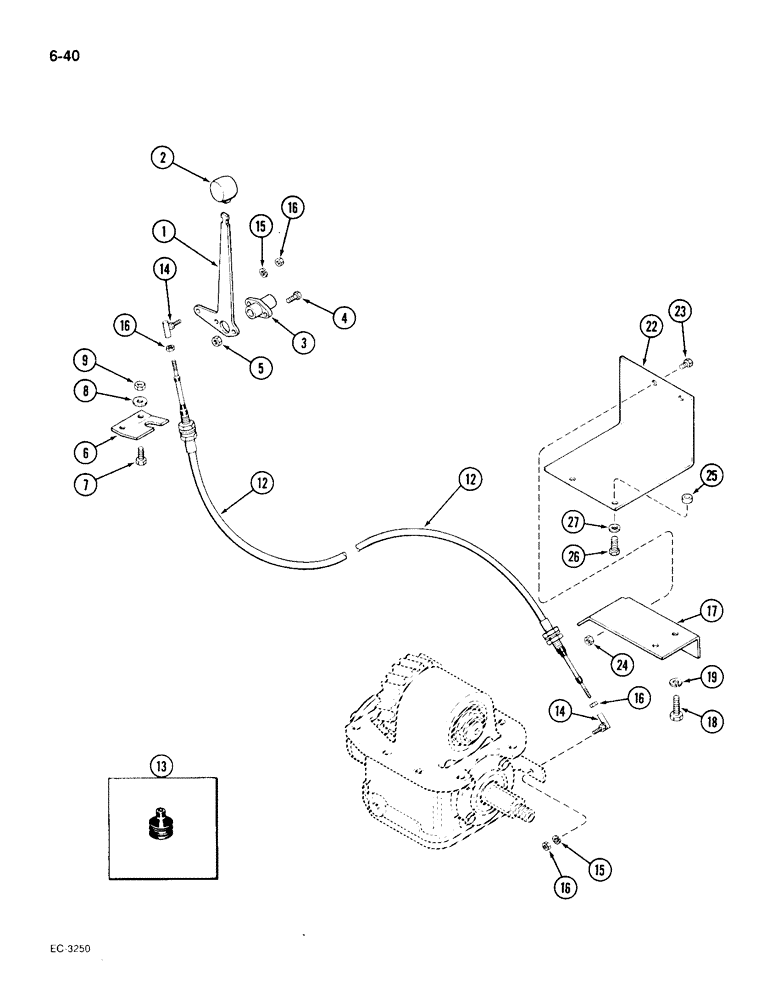

Запчасти Case IH 1896 (6-40) - ENGAGING CONTROL, FOUR WHEEL DRIVE TRACTORS (06) - POWER TRAIN

1

A164096

LEVER

- engaging control

1шт.

2

A177439

KNOB

- control lever (Red)

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - control lever

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, grade 5

2шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

6

A164807

BRACKET

- console

1шт.

7

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

8

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

12

S108254

CABLE

- control, 4 wheel drive

1шт.

13

A145931

BELLOWS

GROMMET - rod

1шт.

14

A60604

BALL JOINT

JOINT - ball, 5/16 inch NF

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF, grade 5

4шт.

17

A163386

BRACKET

- cable

1шт.

See figure 7-12 for mechanical hand brake

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, grade 5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

22

A167208

GUARD

SHIELD - external shift lever

1шт.

23

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch, grade 5

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, grade 5

2шт.

25

D75086

BUSHING

SPACER - shield

2шт.

26

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

27

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

2шт.
