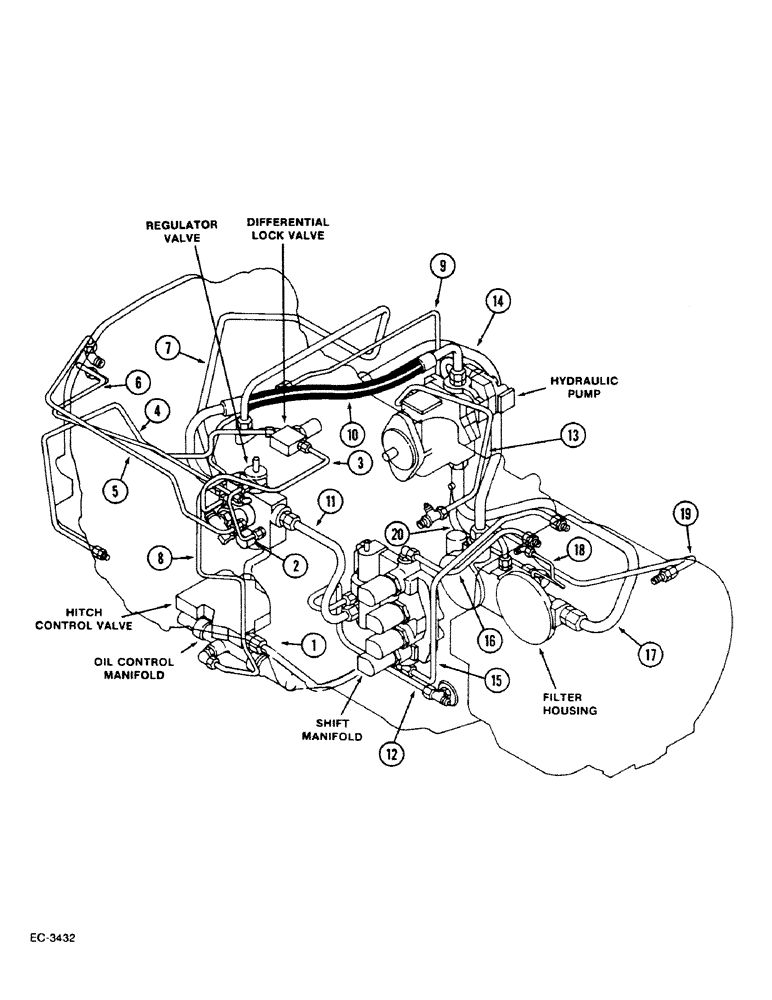

Запчасти Case IH 1896 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Tube, Remote Valve to Manifold, Page 8-83

1шт.

2

PTO Brake Drain Tube, Page 8-5

1шт.

3

Tube, Regulator Valve to Differential Lock Valve, Page 7-11

1шт.

4

Tube, Differential Lock Valve to Transmission, Page 7-11

1шт.

5

Tube, Regulator Valve to PTO Clutch, Page 8-5

1шт.

6

Tube, Regulator Valve to PTO Brake,Page 8-5

1шт.

7

Tube, Manifold to Lift Cylinder, Page 8-83

1шт.

8

Right Hitch Valve Pilot Tube, Page 8-11

1шт.

9

Left Hitch Valve Pilot Tube, Page 8-11

1шт.

10

Hose, Pump to Regulator Valve, Page 8-5

1шт.

11

Supply Tube, Regulator Valve to Shift Manifold, Page 8-7

1шт.

12

Tube, Control Valve to Shift Manifold, Page 8-7

1шт.

13

Hydraulic Pump Drain Tube, Page 8-11

1шт.

14

Transmission Charge Pump Tube, Page 8-15

1шт.

15

C1 Clutch Fill Tube, Page 8-7

1шт.

16

C4 Clutch Fill Tube, Page 8-7

1шт.

17

Tube, Filter Housing to Pump Suction, Page 8-11

1шт.

18

Transmission Countershaft Lubrication Tube, Page 8-15

1шт.

19

C1 Clutch Lubrication Tube, Page 8-15

1шт.
