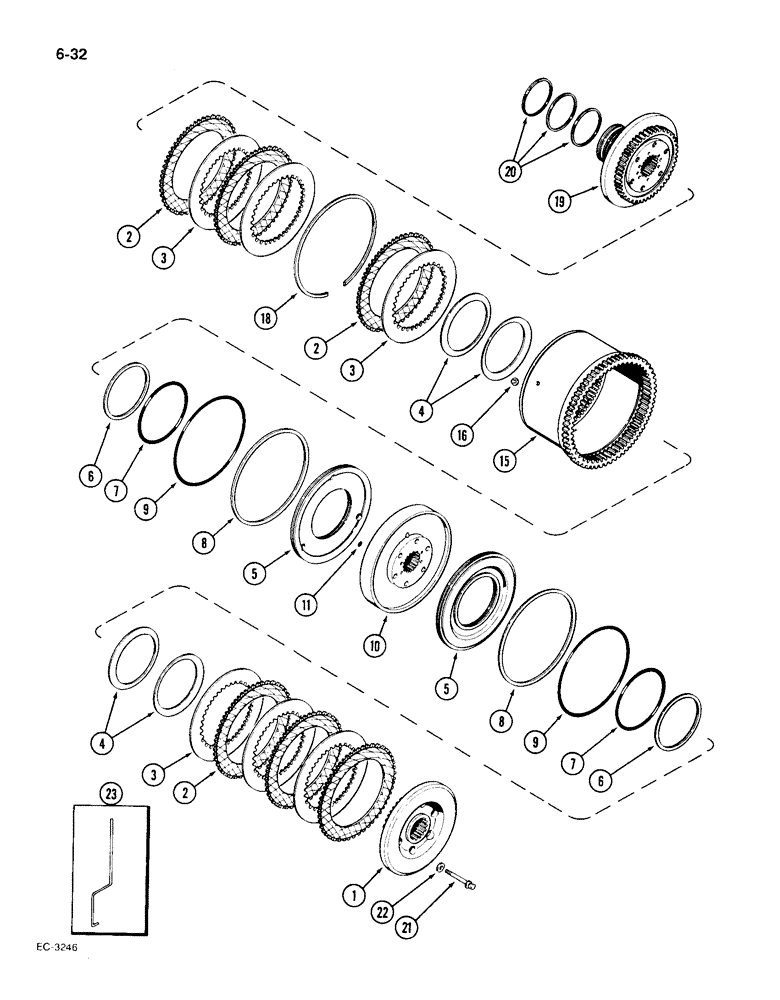

Запчасти Case IH 1896 (6-32) - POWER SHIFT TRANSMISSION, (C2) AND (C3) CLUTCHES, TRANSMISSION SERIAL NUMBER 16265423 AND PRIOR (06) - POWER TRAIN

1

A155803

HUB

- (2) Clutch

1шт.

2

A61981

PLATE

- clutch, sintered

6шт.

3

A155461

PLATE

- clutch

6шт.

4

A58094

SPRING

- clutch return

4шт.

5

A146670

PISTON

- (C2) and (C3) clutch

2шт.

6

A146683

RING

- sealing, 4-1/2 ID x 7/64 inch, clutch, external

2шт.

Part of Power shift Seals Kit, P/N A46286

1шт.

7

A150754

O-RING,4.718" ID x 0.107"

- 4-1/2 ID x 7/64 inch, piston internal

2шт.

Part of Power shift Seals Kit, P/N A46286

1шт.

8

A146682

RING

- sealing,8-1/4 O.D. x 7/64 inch, clutch, external

2шт.

Part of Power shift Seals Kit, P/N A46286

1шт.

9

A150753

O-RING,7.84" ID x 0.107"

- 7-3/4 ID x 7/64 inch, piston, external

2шт.

Part of Power shift Seals Kit, P/N A46286

1шт.

10

A150105

CARRIER

- (C2) and (C3) piston

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - square section, 0.301 ID x 0.066 inch

4шт.

Part of Power shift Seals Kit, P/N A46286

1шт.

15

A58412

GEAR

- ring

1шт.

16

A58413

BUTTON

BEARING - planertary ring gear

3шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- retaining, clutch ring gear

1шт.

19

A155802

HUB

- (C3) clutch

1шт.

20

A58384

RING

- sealing, oil distributor

3шт.

21

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - Ferry head, 1/2 NC x 3 inch, grade 8

6шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- thrust

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service tool)

2шт.

A46286

SEAL KIT,Power Shift

KIT - seals, power shift, Includes: Ref. 6, 7, 8, 9 and 11

1шт.
