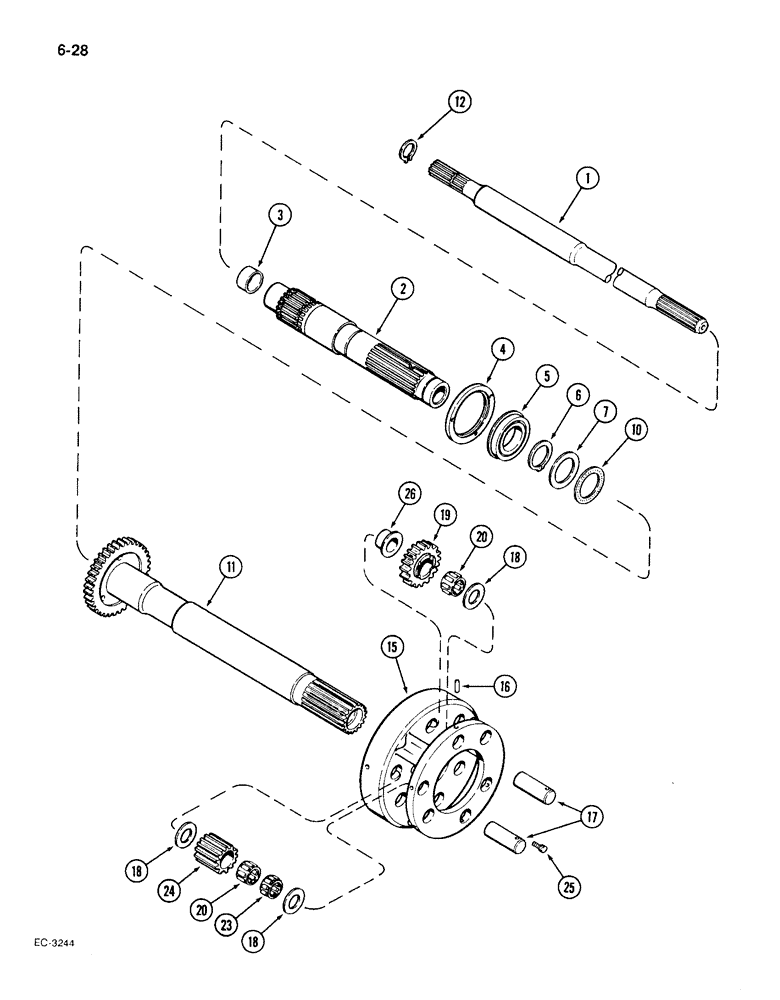

Запчасти Case IH 1896 (6-28) - POWER SHIFT TRANSMISSION, PLANETARY CLUTCH, PRIOR TO TRANSMISSION SERIAL NUMBER 16265423 (06) - POWER TRAIN

1

A168389

SHAFT

- drive, PTO and hydraulic pump

1шт.

2

A168494

SHAFT

- pinion drive, Includes: Ref. 3

1шт.

3

A156939

BUSHING,31.83mm ID x 35.88mm OD x 19.05mm L

- drive shaft

1шт.

4

A146603

RETAINER

- carrier bearing

1шт.

5

A63109

BEARING, BALL

BEARING - ball, carrier (Includes retaining ring)

1шт.

6

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

7

A54021

WASHER

RACE - thrust, 2-1/2 inch

1шт.

10

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING - needle, thrust, flanged

1шт.

11

A168580

SHAFT

- input, planetary drive

1шт.

12

F62235

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

1шт.

15

A168487

CARRIER

- planetary

11шт.

16

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

17

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear

6шт.

18

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planetary gear

6шт.

19

A58405

GEAR

- planetary, short (36 teeth)

3шт.

20

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller, planetary gear

6шт.

23

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - roller, planetary gear (Short)

3шт.

24

A58408

GEAR

- planetary

3шт.

25

62-3258

HEX SOC SCREW,1/4"-28 x 1/2"

SCREW - cap, hex socket, 1/4 NF x 1/2 inch

3шт.

26

A140878

SPACER

- flanged, short gear

3шт.
