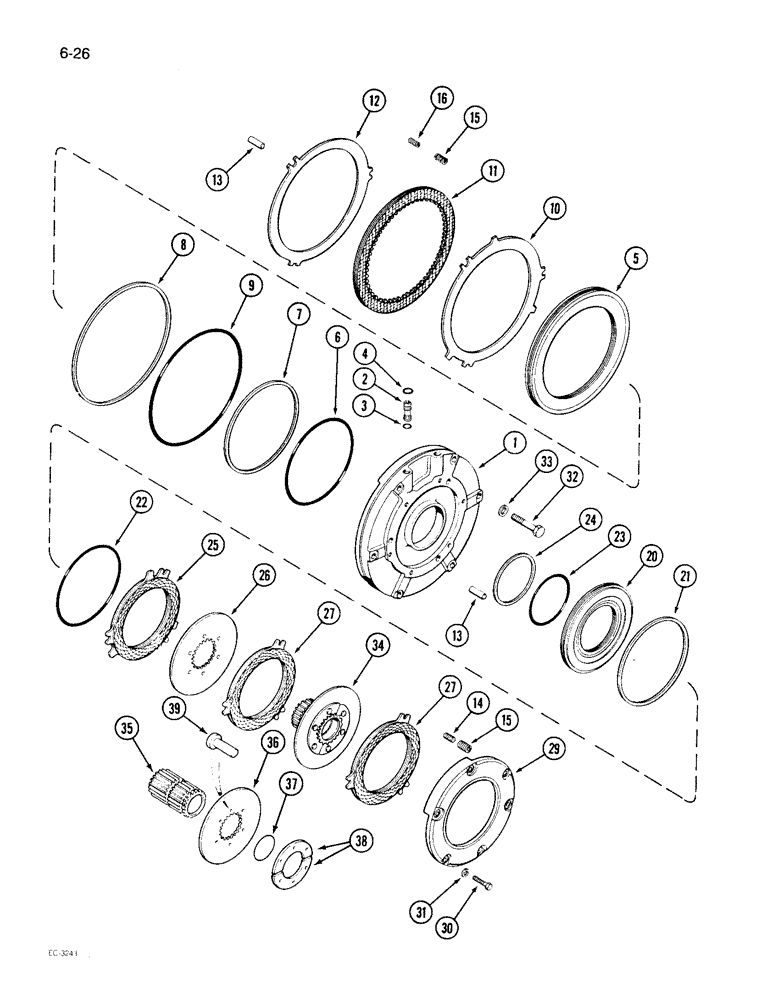

Запчасти Case IH 1896 (6-26) - POWER SHIFT TRANSMISSION, (C1) AND (C4) CLUTCHES (06) - POWER TRAIN

1

A142244

CARRIER

- piston,(C1) and (C4) clutch

1шт.

2

A142241

TUBE

- oil, (C1) and (C4) clutch

2шт.

3

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 ID x 1/16 inch (Replaces G102845)

2шт.

Part of power shift seals kit P/N A46286.

1шт.

4

392382R1

O-RING,0.551" ID x 0.07" Width

- 9/16 ID x 1/16 inch, Class 6, upper

2шт.

Part of power shift seals kit P/N A46286.

1шт.

5

A146671

PISTON

-clutch, (C4)

1шт.

6

A150752

O-RING,9.206" ID x 0.107" OD

- 9-7/64 ID x 7/64 inch,(C4) piston, internal

1шт.

Part of power shift seals kit P/N A46286.

1шт.

7

A146681

SEAL

- sealing, 9 ID x 7/64 inch, (C4) clutch, internal

1шт.

Part of power shift seals kit P/N A46286.

1шт.

8

A146680

RING

- sealing, 12-1/2 O.D. x 7/64 inch, (C4) clutch, external

1шт.

Part of power shift seals kit P/N A46286.

1шт.

9

A150751

O-RING,12.09" ID x 0.107"

- 12 ID x 7/64 inch, (C4) piston, external

1шт.

Part of power shift seals kit P/N A46286.

1шт.

10

A58056

PLATE

- steel (With tabs), (C4) clutch

1шт.

11

1981280C1

PLATE

- friction, (C4) clutch (Replaces A67128)

2шт.

12

A75105

PLATE

- steel (Without tabs), (C4) clutch

2шт.

13

A65555

PIN

- dowel, (C4) clutch reaction plate

6шт.

14

A62607

SPRING

- return, (C1) clutch

3шт.

15

A62606

SPRING

- return, (C1) and (C4) clutch

6шт.

16

A142613

SPRING

- return, (C4) clutch

3шт.

20

A146670

PISTON

- clutch

1шт.

21

A146682

RING

- sealing, 8-1/4 O.D. x 7/64 inch, clutch, external

1шт.

Part of power shift seals kit P/N A46286.

1шт.

22

A150753

O-RING,7.84" ID x 0.107"

- 7-3/4 ID x 7/64 inch, piston, external

1шт.

Part of power shift seals kit P/N A46286.

1шт.

23

A150754

O-RING,4.718" ID x 0.107"

- 4-1/2 ID x 7/64 inch, piston, internal

1шт.

Part of power shift seals kit P/N A46286.

1шт.

24

A146683

RING

- sealing, 4-1/2 ID x 7/64 inch, clutch, external

1шт.

Part of power shift seals kit P/N A46286.

1шт.

25

A168484

PLATE

- clutch, sintered (With tabs)

1шт.

26

A182507

PLATE

- clutch, steel (Replaces A152112)

1шт.

27

A168483

PLATE

- clutch, sintered (Without tabs)

2шт.

29

A142240

PLATE

- clutch, (C1) reaction

1шт.

30

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

31

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, hardened

6шт.

32

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5 (Left lower)

1шт.

32

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, grade 5 (Right lower)

1шт.

32

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Top 4 holes) Hex, 1/2"-13 x 3 1/4", G5

4шт.

33

A30061

WASHER

- flat, hardened, carrier bolts

6шт.

34

A182523

GEAR

ASSEMBLY - sun reaction, Includes: Ref. 35 - 39

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - sun reaction (Replaces A168203)

1шт.

36

A182507

PLATE

- clutch (Steel)

1шт.

37

345-98

RUBBER

BAND - rubber, 1/8 x 3 x 1/32 inch

1шт.

38

A148246

PLATE

- retaining

2шт.

39

47-410

RIVET,FH, 1/4" x 5/8"

- solid, flat head, 1/4 x 5/8 inch

6шт.

A46286

SEAL KIT,Power Shift

KIT - seals, power shift, Includes: Ref. 3, 4, 6, 7, 8, 9, and 21 - 24

1шт.
