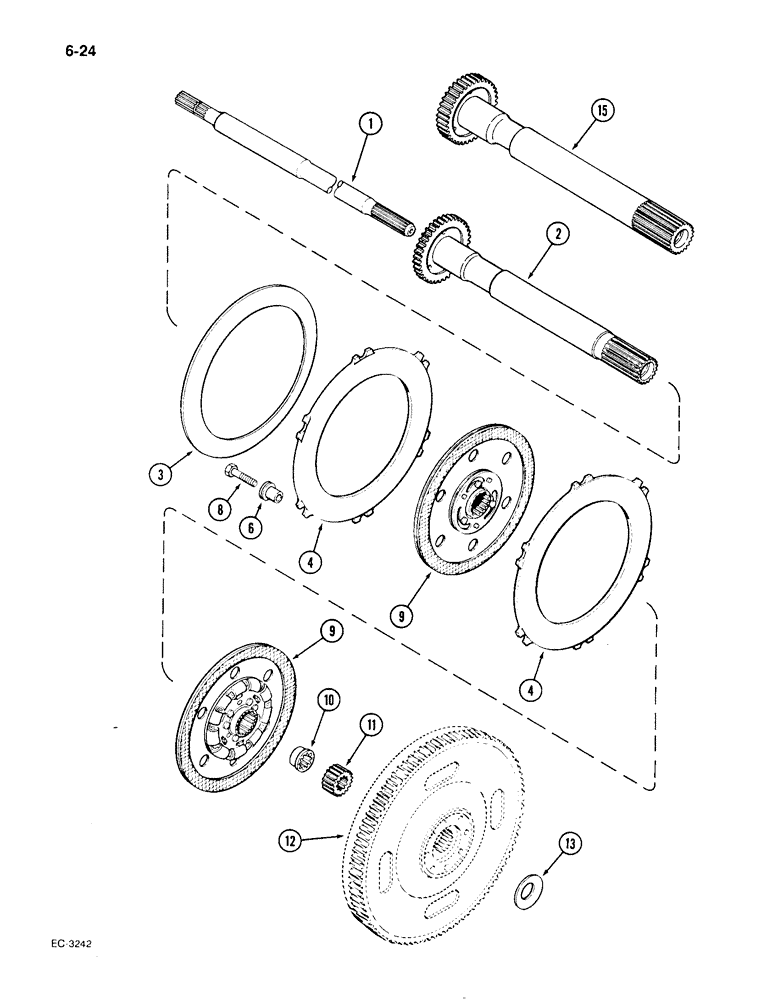

Запчасти Case IH 1896 (6-24) - POWER SHIFT TRANSMISSION, TORQUE LIMITER (06) - POWER TRAIN

1

A168389

SHAFT

SHAFT - drive, PTO and hydraulic pump

1шт.

2

A168580

SHAFT

SHAFT - planetary drive, Serial Range: -16265423

1шт.

3

A64370

SPRING

SPRING - belleville

1шт.

4

A155859

PLATE

PLATE - pressure

2шт.

6

A155865

RETAINER

RETAINER - torque limiter spring

6шт.

8

826-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

BOLT - hex, 12 mm x 65 mm, class 10.9

6шт.

9

1981314C1

TORQUE LIMITER,301.75mm OD

PLATE - torque limiter (Replaces 1981314)

2шт.

9

1981314C1R

REMAN-CLUTCH DISC

Clutch Plate

2шт.

9

1981314C1C

CORE-CLUTCH DISC

Return Part Number

2шт.

10

A65415

BUSHING,17T

BUSHING - drive shaft

1шт.

11

A157385

SLEEVE

SLEEVE - drive shaft

1шт.

12

J917080

FLYWHEEL

FLYWHEEL ASSEMBLY - engine (See Figure 2-34) (Replaces J905032)

1шт.

13

A157296

WASHER

WASHER - spring, wave

1шт.

15

A168205

SHAFT

SHAFT - planetary drive, Start Serial: 16265423

1шт.

A182708

SHAFT

SHAFT new

1шт.

A144797

BUSHING

BUSHING new

1шт.
