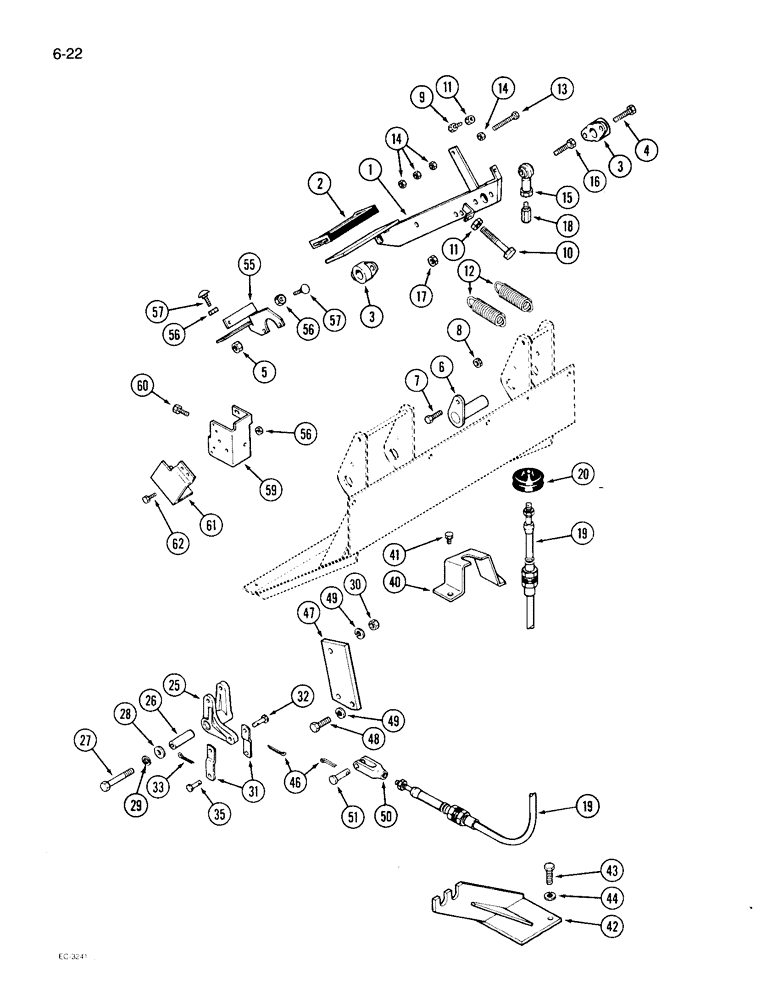

Запчасти Case IH 1896 (6-22) - POWER SHIFT TRANSMISSION, CLUTCH FOOT PEDAL LINKAGE (06) - POWER TRAIN

1

A164689

PEDAL

- foot clutch

1шт.

2

F9197

PAD

COVER - pedal, rubber

1шт.

3

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pivot, foot pedal

2шт.

4

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch, G5

2шт.

5

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex lock, 5/16 inch NC

2шт.

6

A60305

SHAFT

- pivot, clutch pedal

1шт.

7

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

8

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

9

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Upper stop) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

10

113-116

BOLT,Hex, 5/16" - 18 x 3-1/2", SST

- hex, 5/16 NC x 3-1/2 inch, grade 5 (Lower stop)

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

12

A177378

SPRING

- return, clutch pedal

2шт.

13

113-57

BOLT,Hex, 1/4" - 20 x 2", Gr 5, Full Thd

- hex, 1/4 NC x 2 inch, grade 5

1шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, grade 5

4шт.

15

A32398

BALL JOINT

LINK - eye, female, cable to foot pedal

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, grade 5

1шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

18

A185485

FITTING

ADAPTER - 3/8 to 5/16 inch NF

1шт.

19

A161778

CABLE

- clutch control

1шт.

20

A141739

BOOT

- protection, Serial Range: cable-floor

1шт.

25

A161553

CRANK LEVER

BELLCRANK - valve spool

1шт.

26

A161043

SHAFT

- pivot, bellcrank

1шт.

27

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch, grade 5

1шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

31

A149991

LINK

-, Serial Range: bellcrank-spool

2шт.

32

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 inch

1шт.

33

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

35

A8823

PIN,6.29mm OD x 26.99mm L

- clevis, 1/4 x 21/32 inch

1шт.

40

A161336

CAB

BRACKET - cable (On platform)

1шт.

41

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - tapping, hex washer, 3/8 NC x 5/8 inch

2шт.

42

A166323

STRAP

BRACKET - cable (On transmission housing)

1шт.

43

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

44

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

46

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

47

A161824

PLATE

- clutch pedal bellcrank

1шт.

48

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

49

492-11038

LOCK WASHER,3/8"

2шт.

50

A180427

CLEVIS

- cable, 5/16 inch

1шт.

51

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

55

A181037

BRACKET

- switch actuator

1шт.

56

129-141

JAM NUT,Jam, 1/4"-20, G5

4шт.

57

A181036

SQUARE BOLT

- special, switch actuator

2шт.

59

A169843

BRACKET

- clutch switch mounting

1шт.

60

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

SCREW - tapping, hex, 3/8 NC x 5/8 inch

1шт.

61

A169837

COVER

- clutch switch

1шт.

62

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, grade 5

2шт.
