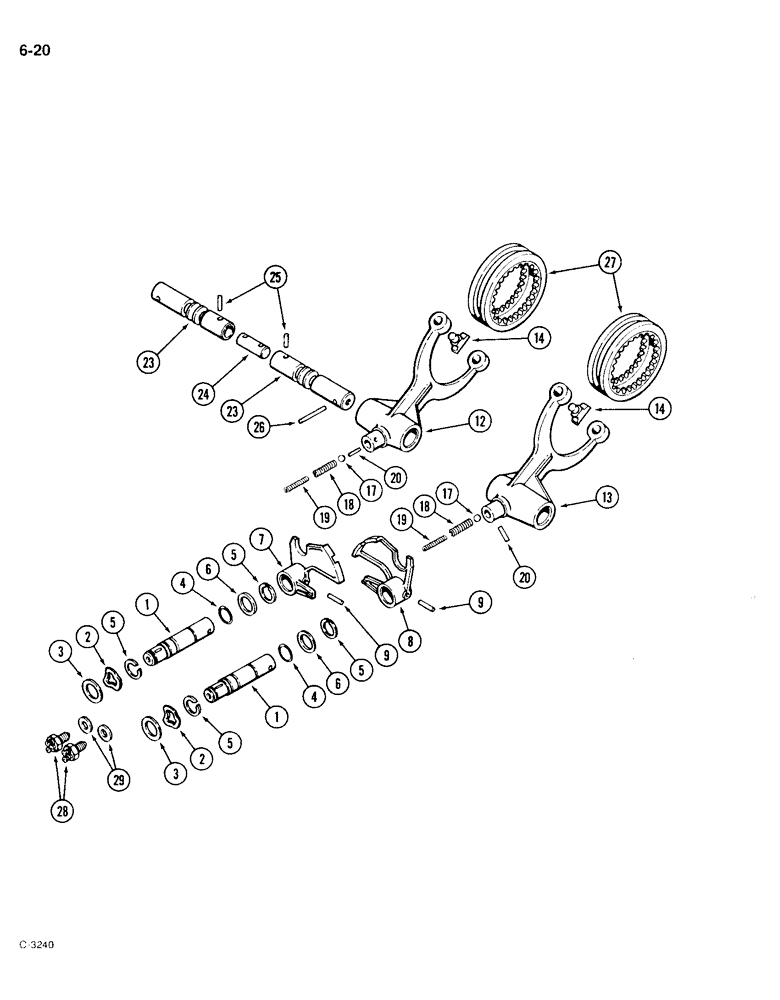

Запчасти Case IH 1896 (6-20) - POWER SHIFT TRANSMISSION, RANGE SHIFT MECHANISM (06) - POWER TRAIN

1

A140904

SHAFT

- shifter

2шт.

2

A63169

SPRING

WASHER - spring wave, shifter shaft

2шт.

3

G46081

BEARING WASHER

WASHER - thrust, 0.032 inch, shifter shaft

2шт.

4

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- shifter shaft

2шт.

5

A37235

SNAP RING,#100, .941", Ext

RING - retaining

1шт.

6

A155861

WASHER,25.78mm ID x 31.75mm OD x 0.99mm Thk

SHIM - inner

1шт.

7

A146896

LEVER

- shift fork, 1st and 2nd

1шт.

8

A146895

LEVER

- shift fork, 3rd and 4th

1шт.

9

138-2040

PIN,1/4" x 1 1/2", Coiled

2шт.

12

A153951

FORK

- gear shift, 1st and 2nd

1шт.

13

A153952

FORK

- gear shift, 3rd and 4th

1шт.

14

A179386

FINGER

- shift fork (Bronze)

4шт.

17

211-12

BALL,7/16 Dia

- 7/16 inch, grade 200, chrome alloy steel

2шт.

18

A26530

SPRING

- detent, outer, 13/32 inch O.D.

2шт.

19

A23886

SPRING

- detent, inner, 1/4 inch O.D.

2шт.

20

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

2шт.

23

A148936

RAIL

- shift, 4 speed

2шт.

24

A148938

PIN

- dowel

1шт.

25

138-2005

PIN,1/4" x 1", Coiled

2шт.

26

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - groove, 1/4 x 2 inch, type 3

1шт.

27

A168028

COLLAR

- sliding, gear shift

2шт.

28

A160237

SWITCH

- neutral start

2шт.

29

G49402

SHIM,.010" Thk

Mounting .010" Thk

1шт.
