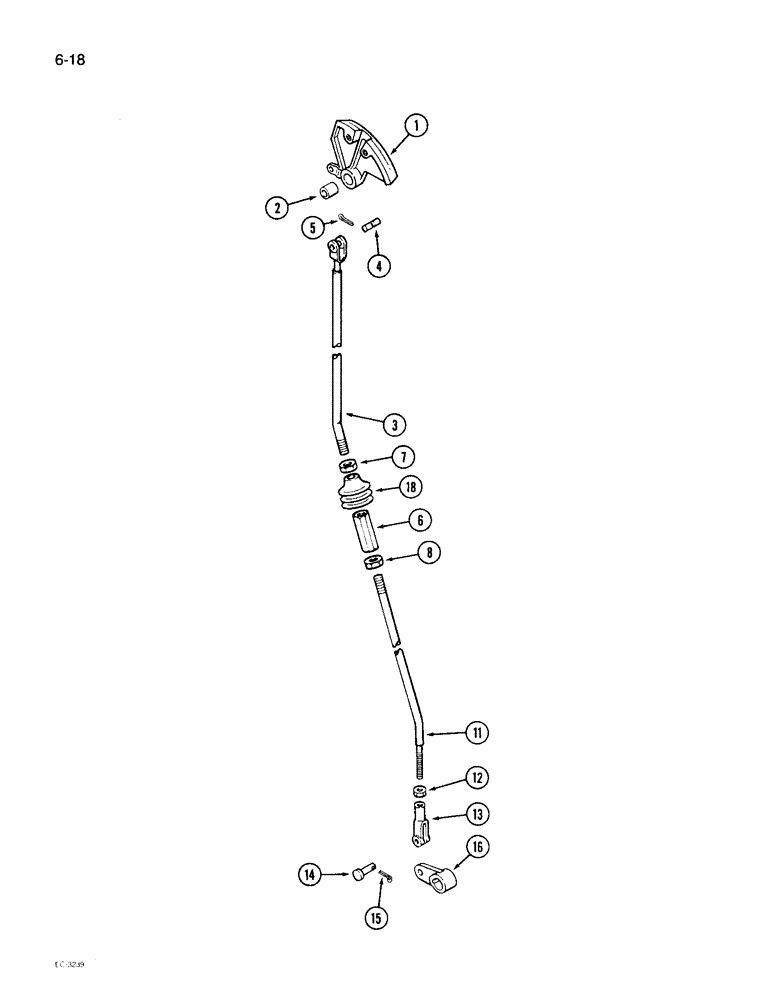

Запчасти Case IH 1896 (6-18) - POWER SHIFT TRANSMISSION, PARK LOCK CONTROL (06) - POWER TRAIN

1

A161147

QUADRANT

- park lock, Includes: Ref. 2

1шт.

2

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- pivot

1шт.

3

A161809

ROD

- upper, park lock

1шт.

4

A145484

PIN,9.46mm OD x 28.57mm L

- quadrant

1шт.

5

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

6

A145050

TURNBUCKLE

- control rod

1шт.

7

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

8

129-376

NUT,Jam, 1/2"-20, G5, LH

- hex jam, 1/2 inch NF (Left hand thread)

1шт.

11

A161810

ROD

- lower, park lock

1шт.

12

129-123

NUT,3/8"-24, G5

1шт.

13

213-41

ADJUSTABLE CLEVIS,3/8"-24

(x 2-1/2 inch) 3/8"-24

1шт.

14

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

15

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32 x 1-3/4 inch

1шт.

16

A67298

LEVER

- park lock shaft (See Figure 6-56)

1шт.

18

A145931

BELLOWS

GROMMET - park lock rod

1шт.
