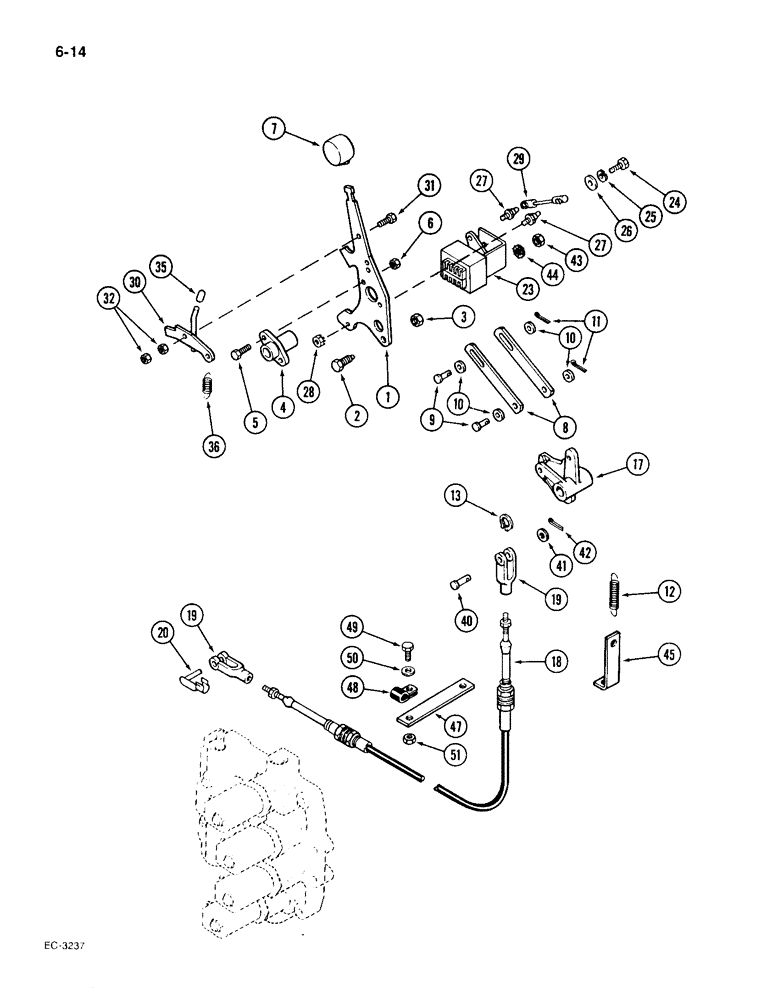

Запчасти Case IH 1896 (6-14) - POWER SHIFT TRANSMISSION, POWER SHIFT LINKAGE (06) - POWER TRAIN

1

A176861

LEVER

- power shift range

1шт.

2

A161797

SCREW,3/8" - 16, Gr 8

- lever stop

1шт.

3

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, 3/8 inch NC

1шт.

4

A160860

BUSHING

BEARING - control lever

1шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, grade 5

2шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

7

A177441

KNOB

- shift lever (Red)

1шт.

8

A177185

LINK

- lever return

2шт.

9

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 inch

2шт.

10

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

3шт.

11

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

12

A164415

SPRING

- lever return

1шт.

13

D32101

SNAP RING,#62, Ext

Ring, Snap, , interlock lever #62, Ext

1шт.

17

A176545

LEVER

- reverse interlock

1шт.

18

A160981

CABLE

- reverse

1шт.

19

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable, 1/4 NF

2шт.

20

A163098

PIN

- spring, 1/4 inch

1шт.

23

1964842C1

SWITCH

- range, 12 speed (Replaces A180201)

1шт.

24

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, grade 5

1шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x .065 inch

1шт.

27

A161786

STUD

- ball joint

2шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- hex, Keps, No. 10

1шт.

29

A161787

HOUSING

ROD ASSEMBLY - ball joint

1шт.

30

A176859

LATCH

- range lever

1шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, grade 5

1шт.

32

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

35

A177232

CAP

- latch

1шт.

36

A163012

SPRING

- latch return

1шт.

40

A8823

PIN,6.29mm OD x 26.99mm L

- clevis, 1/4 x 21/32 inch

1шт.

41

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

1шт.

42

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

43

A39888

NUT

- hex, special, 3/8-32, range switch mounting

1шт.

44

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

45

A146252

BRACKET

- return spring

1шт.

47

A185811

STRAP

- retainer

1шт.

48

49768

CLIP

- cable

1шт.

49

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, grade 5

1шт.

50

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x .065 inch

1шт.

51

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, grade 5

1шт.
