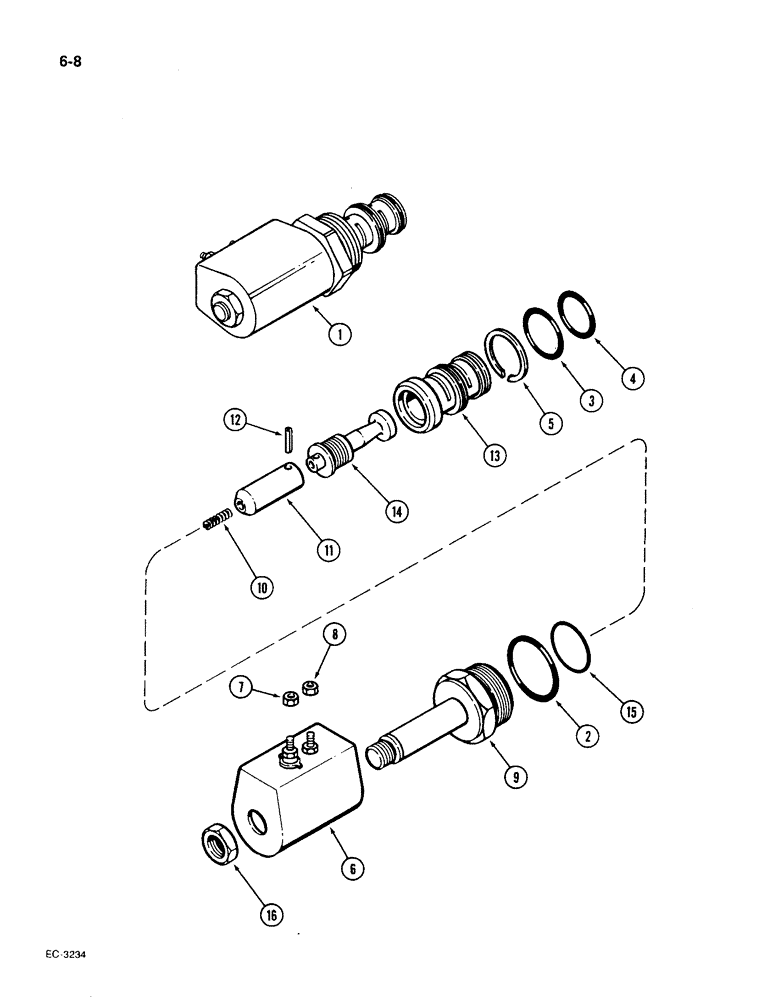

Запчасти Case IH 1896 (6-08) - POWER SHIFT SOLENOID ASSEMBLY (06) - POWER TRAIN

A160899

VALVE

ASSEMBLY - solenoid, Includes: Ref. 1 - 16

4шт.

1

A49488

SWITCH

CARTRIDGE ASSEMBLY - solenoid, Includes: Ref. 2 - 5

1шт.

A49489

SEAL

KIT - service, solenoid seals, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 inch ID

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1-9/16 inch ID

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 inch ID

1шт.

5

NSS

NOT SOLD SEPARAT

RING -rertaining, 1-9/16 inch ID

1шт.

6

A49486

SWITCH

COIL ASSEMBLY - solenoid

1шт.

7

225-10108

NUT,#8-32

2шт.

8

225-10110

NUT,#10-24

2шт.

9

NSS

NOT SOLD SEPARAT

TUBE - solenoid valve

1шт.

10

A49487

SPRING

- coil

1шт.

11

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - roll, spool retaining

1шт.

13

NSS

NOT SOLD SEPARAT

CAGE - solenoid

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - solenoid pressure

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 1-11/16 inch ID, cage sealing

1шт.

16

131-60

LOCK NUT,5/8"-18

NUT - hex, 5/8 inch NF

1шт.
