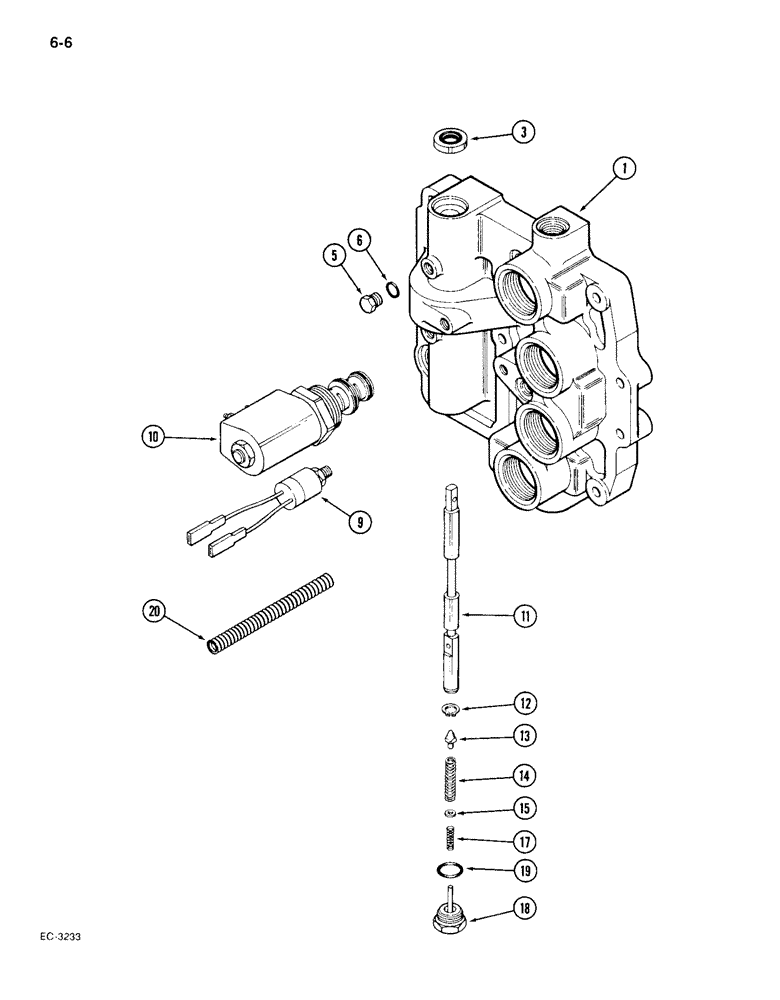

Запчасти Case IH 1896 (6-06) - HYDRAULIC MANIFOLD ASSEMBLY, ELECTRIC SHIFT (06) - POWER TRAIN

A158497

MANIFOLD

ASSEMBLY - electric shift, Includes: Ref. 1 - 20

1шт.

1

A158153

MANIFOLD

- electric shift

1шт.

3

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil

1шт.

5

9672438

PLUG,7/16" - 20 ORB

1/4" tube, Incl. Ref. 6 Hex Hd, 7/16"-20 ORB

5шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

9

A156555

SWITCH

- oil pressure (100 - 140 psi)

3шт.

10

A160899

VALVE

ASSEMBLY - solenoid (See Figure 6-08)

4шт.

11

A151914

SPOOL

- modulator

1шт.

12

G46176

SNAP RING,#56, Ext

Ring, Snap, , gear to pump #56, Ext

1шт.

13

A61991

POINT

- modulator

1шт.

14

A61990

SPRING

- modulator

1шт.

15

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

17

A61988

SPRING

- clutch modulator

1шт.

18

A61985

PLUG

- modulator, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 inch O.D. tube

1шт.

20

A168840

CONDUIT

- convoluted

1шт.

A156760

HARNESS

- solenoid ground (See Figure 4-22)

1шт.

1346331C1

SPRING

new inner modulation

1шт.
