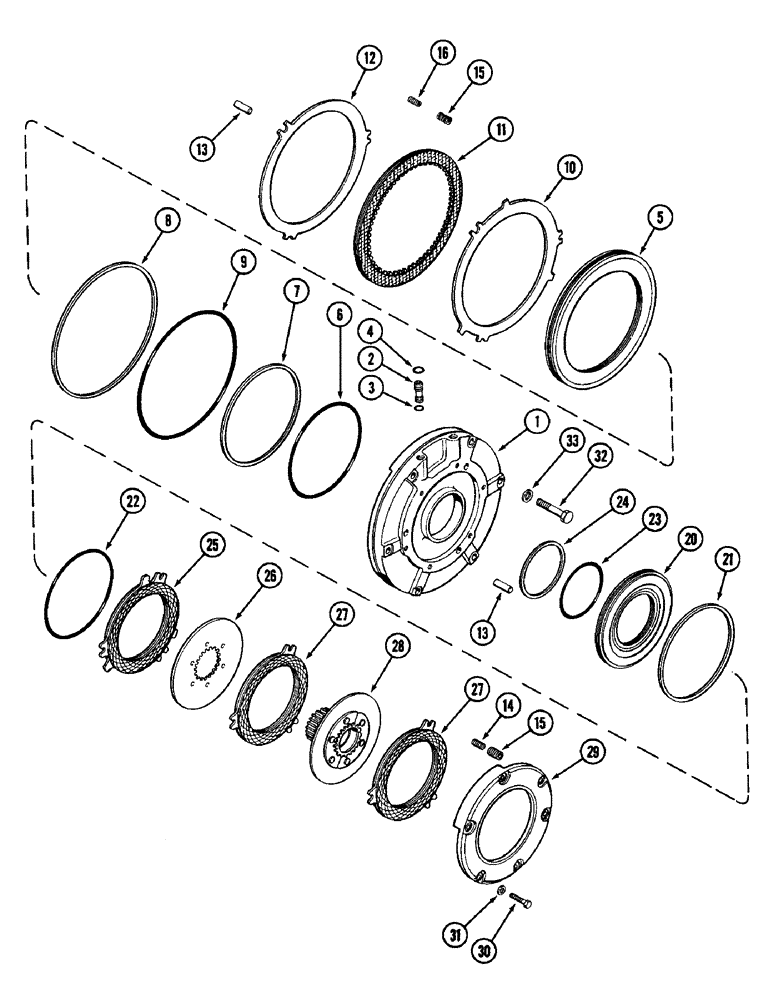

Запчасти Case IH 1896 (6-166) - POWER SHIFT TRANSMISSION, (C1) AND (C4) CLUTCHES (06) - POWER TRAIN

1

A142244

CARRIER

- piston, (C1) and (C4)

1шт.

2

A142241

TUBE

- oil, (C1) and (C4) clutch

2шт.

3

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- lower, 5/8 inch (16 mm)

2шт.

4

A65918

O-RING,0.551" ID x 0.691" OD

- upper, 11/16 inch (18 mm)

2шт.

5

A146671

PISTON

- (C4) clutch

1шт.

6

A150752

O-RING,9.206" ID x 0.107" OD

- internal sel, 9-5/32 inch ID (232 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

7

A146681

SEAL

- internal seal, 8-31/32 inch ID (228 mm)

1шт.

8

A146680

RING

- internal seal, 12-9/16 inch OD (319 mm)

1шт.

9

A150751

O-RING,12.09" ID x 0.107"

RING - internal seal, 12-1/16 inch OD (306 mm)

1шт.

10

A58056

PLATE

- steel, (C4) clutch (With tabs)

1шт.

11

A67128

PLATE

- friction, (C4) clutch

2шт.

12

A75105

PLATE

- steel, (C4) clutch (Without tabs)

2шт.

13

A65555

PIN

- clutch reaction plate (C4), 1-37/64 inch long (40 mm)

3шт.

14

A62607

SPRING

- return (C1)

3шт.

15

A62606

SPRING

- return (C1) and (C4)

6шт.

16

A142613

SPRING

- return (C4), 1-1/4 inch (32 mm) free length

3шт.

20

A146670

PISTON

- (C1) clutch

1шт.

21

A146682

RING

- external seal, 8-9/32 inch OD (210 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

22

A150753

O-RING,7.84" ID x 0.107"

- external seal, 7-7/8 inch OD (200 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

23

A150754

O-RING,4.718" ID x 0.107"

- internal seal, 4-11/16 inch ID (119 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

24

A146683

RING

- external seal, 4-15/32 inch ID (114 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

25

A168484

PLATE

- (C1) Clutch, sintered (With tabs)

1шт.

26

A152112

PLATE

- (C1) Clutch, steel

1шт.

27

A168483

PLATE

- (C1) Clutch, sintered (Without tabs)

2шт.

28

A168203

PLATE

GEAR ASSEMBLY - sun reaction, (C1) Clutch, I.D. of splined area 4.5"

1шт.

A152623

PLATE

I.D. of splined area 3.582"

1шт.

29

A142240

PLATE

- (C1) Reaction

1шт.

30

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

31

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- mounting bolt

6шт.

32

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

6шт.

32

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

33

A30061

WASHER

- carrier bolt

6шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: ref. nos. 3, 6, 7, 8, 9, 21, 22, 23 and 24 on figures 6-166 and 6-172

1шт.
