Запчасти Case IH 1896 (6-164) - POWER SHIFT TRANSMISSION, TORQUE LIMITER (06) - POWER TRAIN

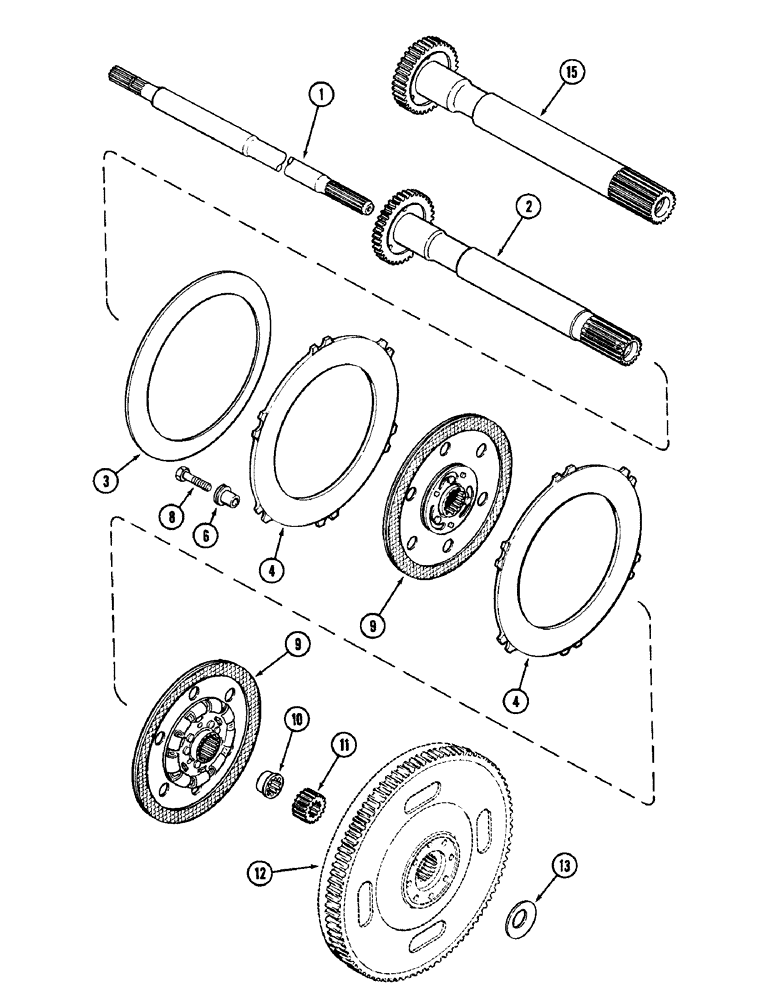

Схема запчастей Case IH 1896 - (6-164) - POWER SHIFT TRANSMISSION, TORQUE LIMITER (06) - POWER TRAIN
15
9
6
8
3
2
10
4
9
13
4
12
1
11

Артикул

Название

Примечание

Количество

1

A168389

SHAFT

- drive, PTO and hydraulic pump

1шт.

2

A168580

SHAFT

- planetary drive

1шт.

Prior to transmission serial no. 16264523.

1шт.

3

A64370

SPRING

- Belleville

1шт.

4

A155859

PLATE

- pressure

2шт.

6

A155865

RETAINER

- torque limiter spring

6шт.

8

826-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, M12 x 65 mm

6шт.

9

A157381

PLATE

- torque limiter

2шт.

10

A65415

BUSHING,17T

- drive shaft

1шт.

11

A157385

SLEEVE

- drive shaft

1шт.

12

REF

INSTRUCTION

FLYWHEEL - engine (See figure 2-32)

1шт.

13

A157296

WASHER

- spring, wave

1шт.

15

A168205

SHAFT

- planetary drive

1шт.

Transmission serial no. 16264523 and after.

1шт.

Выбрано товаров: 14
