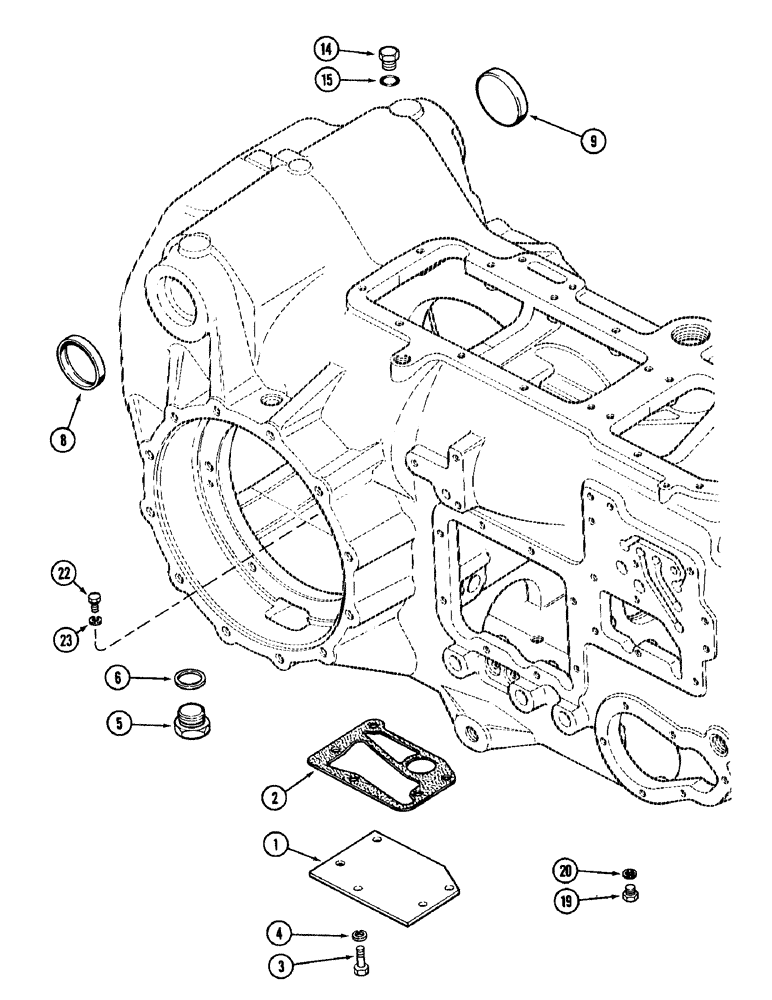

Запчасти Case IH 1896 (6-152) - TRANSMISSION COVERS AND HARDWARE, TRACTORS WITHOUT HITCH (06) - POWER TRAIN

1

A162800

PLATE

COVER - manifold opening

1шт.

2

A64014

GASKET

- cover

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

5

A63498

PLUG

- sensing lever opeining

1шт.

6

A63447

GASKET

- plug

1шт.

8

41-1058

PLUG,Cup, 3 5/8"

- cup, 3-5/8 inch (92 mm) Diameter (Right opening for rockshaft)

1шт.

9

41-1054

PLUG,Cup, 3 3/8"

- cup, 3-3/8 inch (86 mm) Diameter (Left opening for rockshaft)

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Assy, 5/8 tube, Incl. Ref. 15 Hex Hd, 7/8"-14 ORB

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 14 x 2 mm)

1шт.

19

A20826

PLUG

- hex, transmission case

1шт.

20

A11530

GASKET

WASHER - plug, copper

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.
