Запчасти Case IH 1896 (5-140) - FRONT WHEEL, MFD TRACTORS (05) - STEERING

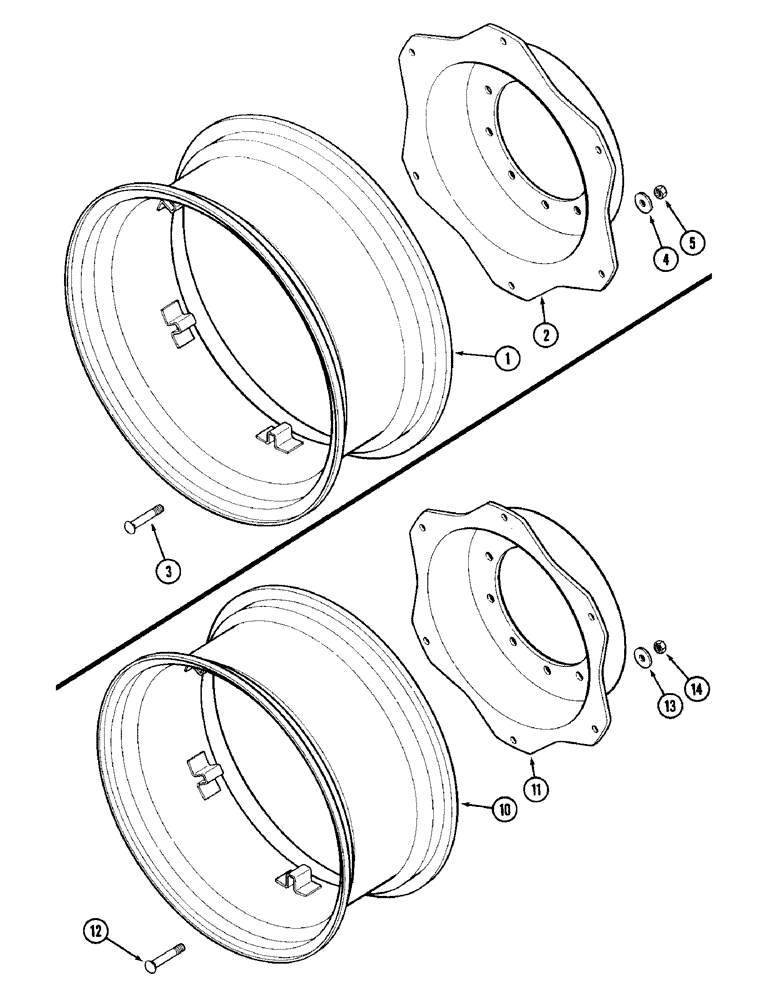

Схема запчастей Case IH 1896 - (5-140) - FRONT WHEEL, MFD TRACTORS (05) - STEERING
3
4
2
10
1
11
5
14
12
13

Артикул

Название

Примечание

Количество

1

A169611

RIM

- front wheel, for 13.6 and 14.9 x 28 tire

2шт.

1

A169612

RIM

- front wheel, for 16.9 x 28 tire

2шт.

2

A169609

DISC, WHEEL

DISC - wheel

2шт.

3

111-615

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/4", G5

BOLT - carriage, 5/8 NC x 3-1/4 inch

12шт.

4

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch (17 x 44 x 4 mm)

12шт.

5

129-107

NUT,5/8"-11, G5

12шт.

10

A169613

RIM

- front wheel, for 14.9 x 26 tire

2шт.

10

A169614

RIM

- front wheel, for 16.9 and 18.4 x 26 tire

2шт.

11

A169610

DISC, WHEEL

DISC - wheel

2шт.

12

111-615

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/4", G5

BOLT - carriage, 5/8 NC x 3-1/4 inch

12шт.

13

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch (17 x 44 x 4 mm)

12шт.

14

129-107

NUT,5/8"-11, G5

12шт.

Выбрано товаров: 12
