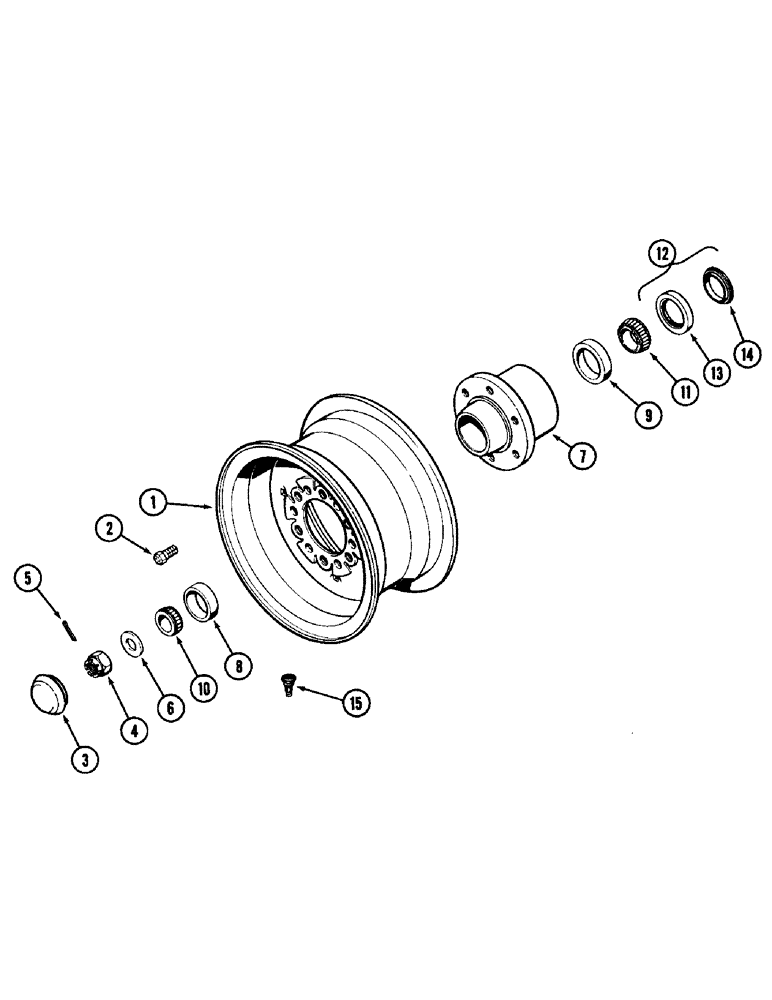

Запчасти Case IH 1896 (5-136) - FRONT WHEEL AND HUB, 6 BOLT HUB (05) - STEERING

1

A60405

WHEEL

- front (For 10.00 x 16 tire)

2шт.

2

B18264

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

12шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex slotted, 1-1/8 inch NF

2шт.

5

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle nut

2шт.

7

A57336

HUB

- wheel

2шт.

8

A27631

CUP

- bearing, outer, 2-7/8 inch OD (73 mm)

2шт.

9

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, 3-17/64 inch OD (83 mm)

2шт.

10

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, 1-3/8 inch ID (35 mm)

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (45 mm)

2шт.

12

A57250

OIL SEAL

OIL SEAL ASSEMBLY - hub, Includes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - outer (Reference no. A57247)

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - inner (Reference no. A57246)

1шт.

15

A38261

VALVE

- tubeless tire

2шт.
