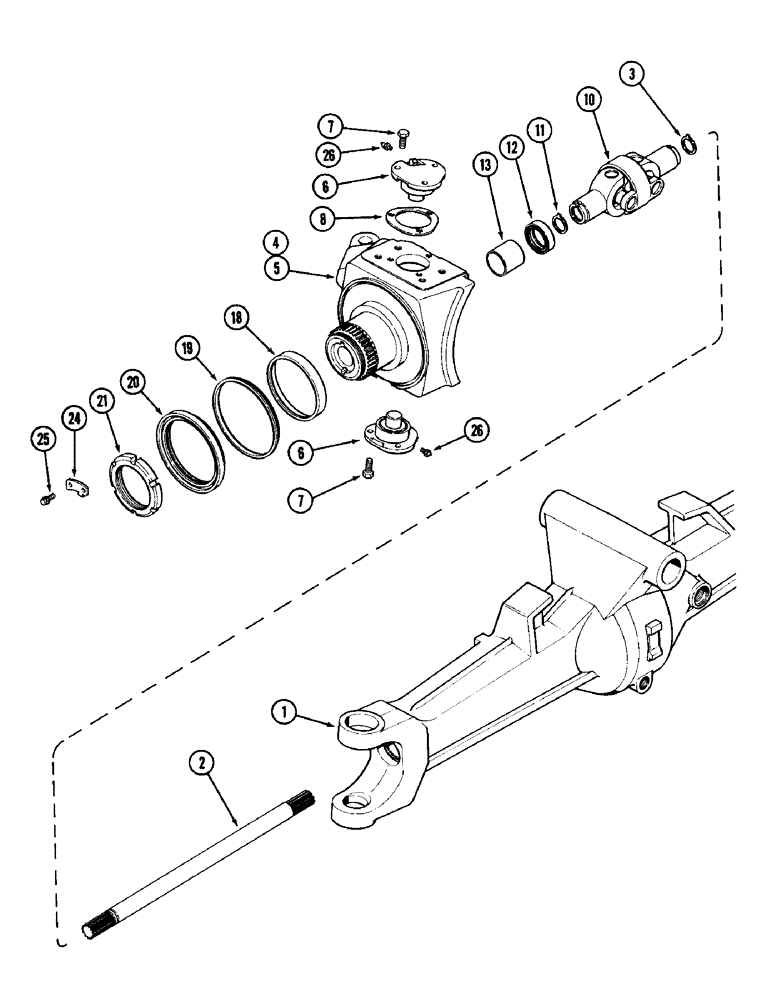

Запчасти Case IH 1896 (5-132) - FRONT AXLE STEERING KNUCKLE AND SHAFT (05) - STEERING

A169532

AXLE

ASSEMBLY - front (Complete) (Continued from figure 5-130), Includes: Ref. 1 - 26

1шт.

1

REF

INSTRUCTION

HOUSING - axle (See figure 5-124)

1шт.

2

A52098

SHAFT

- axle

2шт.

3

A52126

RING

- retaining

2шт.

4

A52108

KNUCKLE JOINT

KNUCKLE - steering, RH (LH shown)

1шт.

5

A52107

KNUCKLE JOINT

KNUCKLE - steering, LH

1шт.

6

A52364

PIN

- king, axle

4шт.

7

A52122

BOLT,Hex, M14 x 35mm

BOLT - hex, M14 x 35 mm

12шт.

8

A52115

SHIM,0.6mm Thk

Pivot 0.6mm Thk

1шт.

8

A52116

SHIM,1.0mm Thk

Pivot 1.0mm Thk

1шт.

8

A52117

SHIM,1.4mm Thk

Pivot 1.4mm Thk

1шт.

8

A52118

SHIM,1.6mm Thk

Pivot 1.6mm Thk

1шт.

8

A52119

SHIM,1.8mm Thk

Pivot 1.8mm Thk

1шт.

8

A52120

SHIM,2.0mm Thk

Pivot 2.0mm Thk

1шт.

10

A52389

COUPLING

JOINT ASSEMBLY - articulate

2шт.

11

A52126

RING

- retaining

2шт.

12

A52102

SEAL

- shaft, axle

2шт.

13

A52123

BUSHING

SLEEVE - bearing, axle

2шт.

18

A52128

SLEEVE CYLINDER

SLEEVE - axle

2шт.

19

A52130

RING

- scraper

2шт.

20

A52129

SEAL

- shaft

2шт.

21

A52365

NUT

- metric slotted hex

2шт.

24

A52134

PLATE ASSY.

PLATE - lock

2шт.

25

A52135

FLANGE BOLT

BOLT - flanged hex, M10 x 20 mm

4шт.

26

A52371

FITTING

- grease, M6 x 1 mm

4шт.
