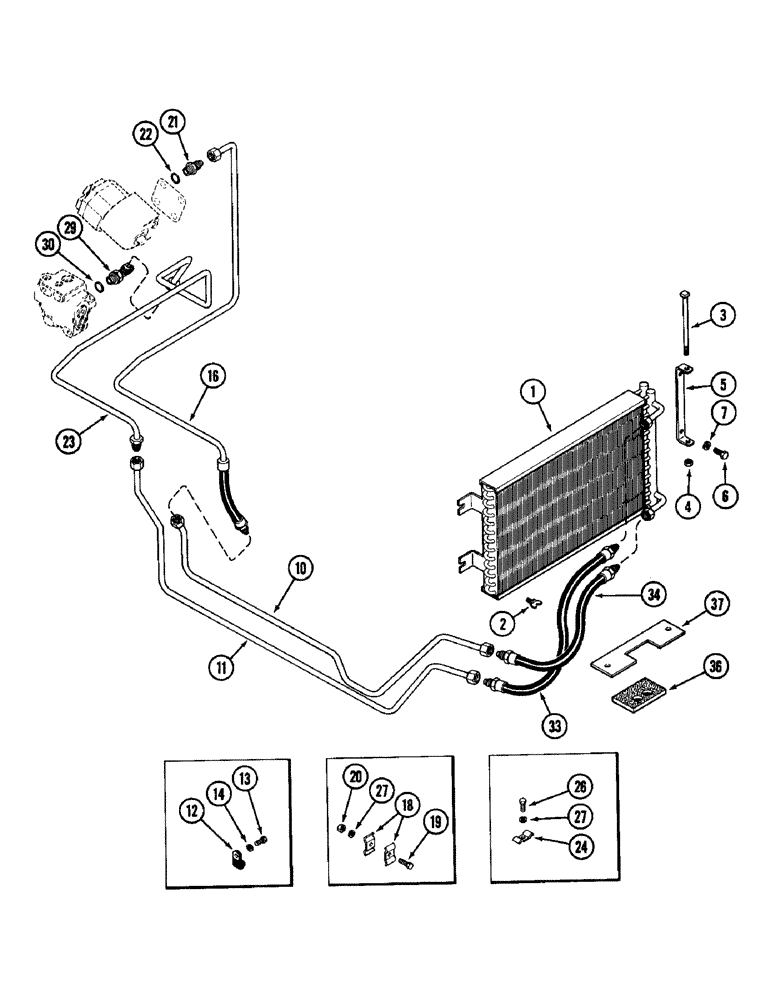

Запчасти Case IH 1896 (5-106) - OIL COOLER (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A160399
COOLER
- hydraulic oil
1шт.
2
A141485
THUMB SCREW,5/16" - 18 x 5/8"
- wing head, 5/16 NC x 5/8 inch
2шт.
3
17-4136
BOLT,Sq Hd, 1/4" - 20 x 8 1/2", Gr 2
- square head, 1/4 NC x 8-1/2 inch
1шт.
4
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
1шт.
5
A141489
SUPPORT
BRACKET - pivot, oil cooler
1шт.
6
113-118
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
2шт.
7
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
10
A169713
TUBE
- inlet
1шт.
11
A169711
TUBE
- outlet
1шт.
12
49838
CLAMP
- tube
4шт.
13
814-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd
4шт.
14
195-103
WASHER,5/16"
- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)
4шт.
16
A165759
HOSE
TUBE - inlet
1шт.
18
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
- hose
2шт.
19
814-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, M8 x 25 mm
1шт.
20
825-1108
NUT,Hex, M8, Cl 8
1шт.
21
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 22
1шт.
23
A167458
TUBE
- rear
1шт.
24
A63323
CLAMP
- tube
1шт.
26
814-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, M8 x 25 mm
1шт.
27
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
29
218-5242
TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
ASSEMBLY - adjustable, 1/2 tube 3/4-16 inch thread, Includes: Ref. 30
1шт.
33
A176268
HOSE,12.70 mm ID x 991.00 mm, SAE 100R1
- Cooler outlet 12.70 mm ID x 991.00 mm, SAE 100R1
1шт.
34
A169712
HOSE,12.70 mm ID x 830.00 mm, SAE100 R1
12.70 mm ID x 830.00 mm, SAE 100R1 - Cooler inlet
1шт.
36
A166982
SEAL
- coooler hose
1шт.
37
A166981
CLIP
- cooler hose and seal
1шт.
22
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)
1шт.
30
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)
1шт.
Выбрано товаров: 28
