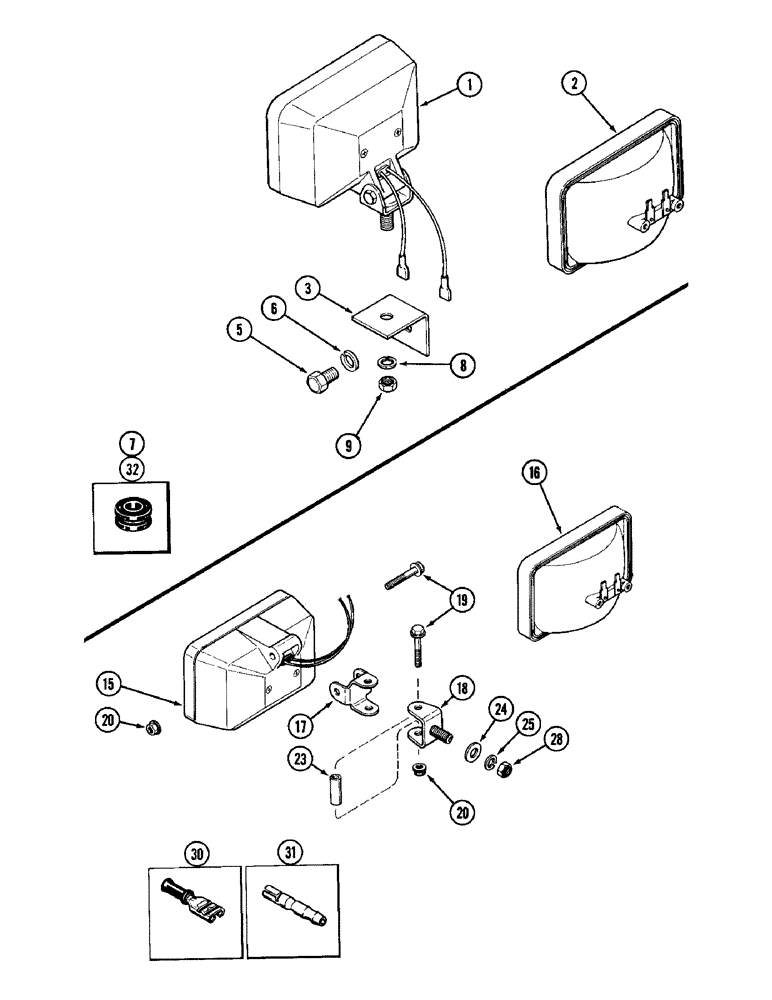

Запчасти Case IH 1896 (4-094) - FLOOD LAMP ATTACHMENTS (04) - ELECTRICAL SYSTEMS

A166652

LAMP

ATTACHMENT - upper flood lamp, 4 post ROPS (Set of 2) (Machinery item), rear, Includes: Ref. 1 - 6

1шт.

1

A165347

LAMP

ASSEMBLY - flood (Order A177347), Includes: Ref. 2

2шт.

2

A48265

LAMP

BULB - sealed beam

1шт.

3

A166585

BRACKET

- mounting

2шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- flood lamp

1шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

A177347

LAMP

ATTACHMENT - flood, upper front, rear, and fender mounted, Includes: Ref. 15 - 31

1шт.

15

A52214

LAMP

ASSEMBLY - flood (Order A177347), Includes: Ref. 16

1шт.

16

A48265

LAMP

BULB - sealed beam (Includes screws)

1шт.

17

A52215

SUPPORT

BRACKET - lamp, adjusting (Upper rear mounted)

1шт.

18

A52216

SUPPORT

BRACKET - stud, mounting

1шт.

19

A52217

BOLT

- hex flange, 5/16 NC x 2 inch

2шт.

20

A52218

NUT

- hex flange, 5/16 inch NC

2шт.

23

A52219

SPACER

- pivot, bracket (Upper rear mounted)

1шт.

24

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

1шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

28

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

30

A177332

SPADE TERMINAL,Female

TERMINAL - wire (Femal blade type)

2шт.

31

A52220

TERMINAL CONNECTOR,Male

TERMINAL - wire ( bullet type) Male

2шт.

32

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- wire (Fender mounted)

1шт.
