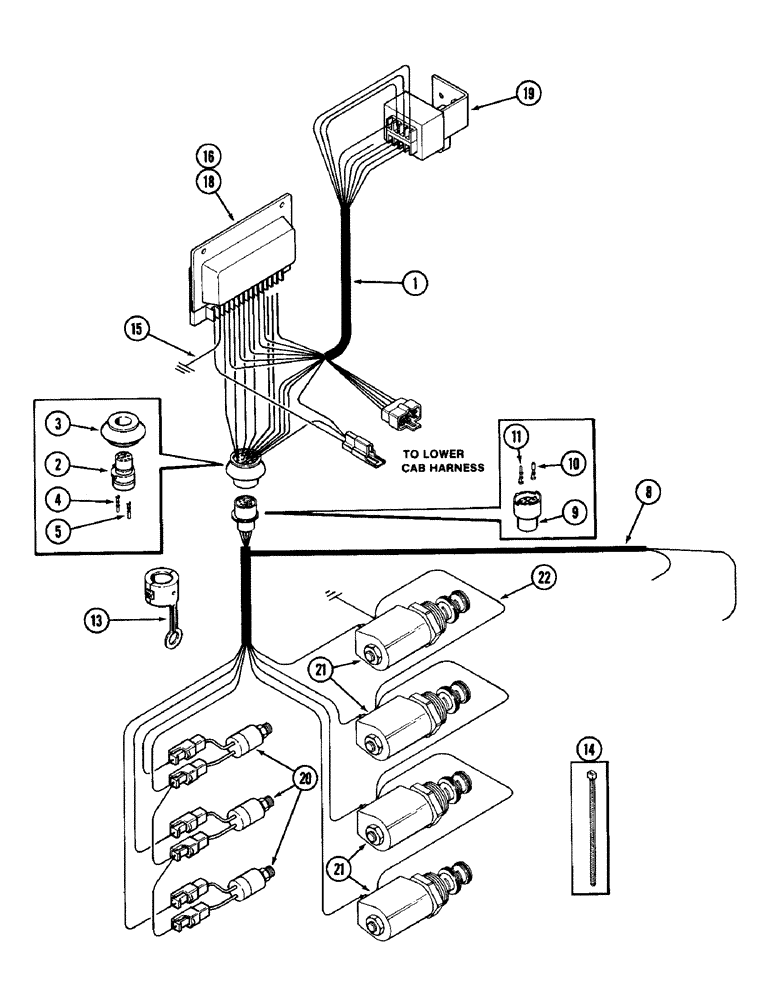

Запчасти Case IH 1896 (4-072) - ELECTRIC SHIFT HARNESS (04) - ELECTRICAL SYSTEMS

1

A177694

HARNESS

ASSEMBLY - electric shift (Inside of cab), Includes: Ref. 2 - 11

1шт.

2

NLS

NO LONGER SERVICED

- harness

1шт.

3

A52280

GROMMET

- socket

1шт.

4

A52281

ELEC. TERMINAL PIN,14 - 18 SAE

TERMINAL - socket, male

5шт.

5

A52282

POWER SOCKET,14 - 18 SAE

TERMINAL - socket, female

5шт.

8

A163115

HARNESS

ASSEMBLY - electric shift (Outside of cab)

1шт.

9

A52283

SOCKET

- harness

1шт.

10

A52281

ELEC. TERMINAL PIN,14 - 18 SAE

TERMINAL - socket, male

5шт.

11

A52282

POWER SOCKET,14 - 18 SAE

TERMINAL - socket, female

5шт.

13

A163118

CLAMP

- harness retaining

1шт.

14

R38237

STRAP

- tie, harness

1шт.

15

A163111

ELECTRICAL WIRE

WIRE - relay ground (Black) 14 inch (356 mm)

1шт.

16

A164734

BOARD

ASSEMBLY - relay (JI Case installed, order A177703)

1шт.

18

A177703

RELAY

BOARD ASSEMBLY - relay (Service only) (Replaces A176754)

1шт.

19

A180201

SWITCH

ASSEMBLY - range (Replaces A164974)

1шт.

20

A156555

SWITCH

- transmission oil pressure

3шт.

21

A160899

VALVE

ASSEMBLY - solenoid

4шт.

22

A156760

HARNESS

- solenoid ground

1шт.
