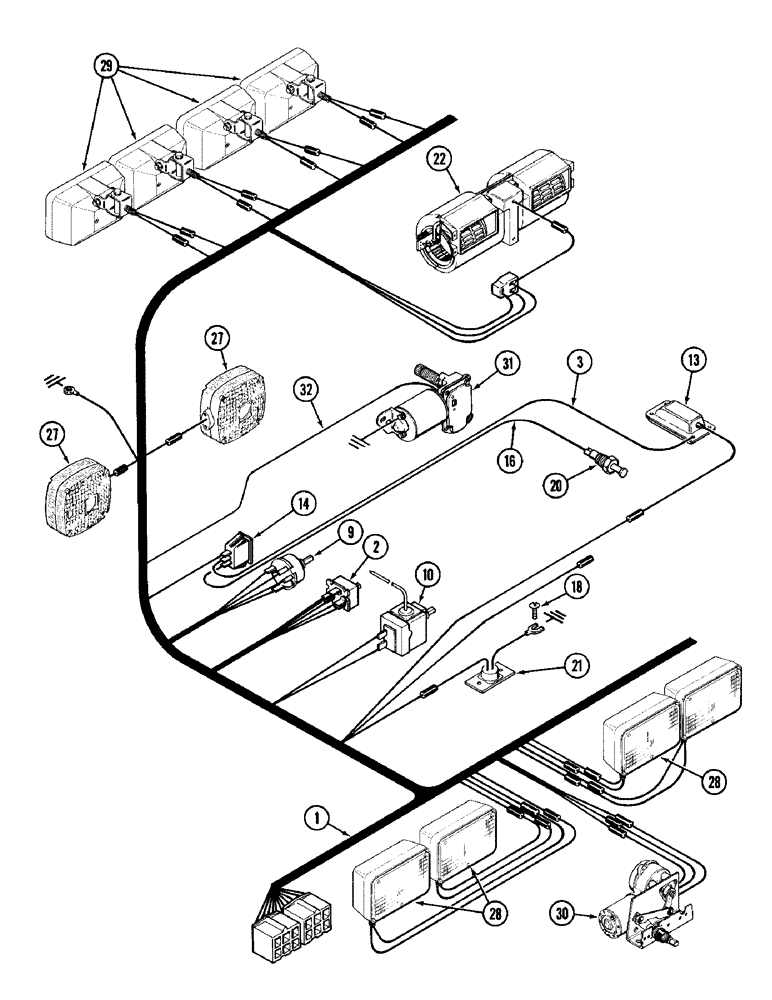

Запчасти Case IH 1896 (4-068) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

1

F66064

HARNESS

ASSEMBLY - headliner wiring

1шт.

2

REF

INSTRUCTION

SWITCH - blower (See figure 9-428)

1шт.

3

F64731

CABLE PULLING GRIP

WIRE - dome to light switch (Brown)

1шт.

9

REF

INSTRUCTION

SWITCH - wiper (See figure 9-428)

1шт.

10

REF

INSTRUCTION

SWITCH - air conditioning (See figure 9-428)

1шт.

13

REF

INSTRUCTION

LAMP - dome (See figure 9-426)

1шт.

14

REF

INSTRUCTION

SWITCH - dome lamp (See figure 9-428)

1шт.

16

F64127

ELECTRICAL WIRE

WIRE - switch to door switch (White) 70 inch (1 778 mm)

1шт.

18

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping Phillips pan head, no. 10-16 x 1/2 inch

1шт.

20

F63895

SWITCH

- lamp, door opening

1шт.

21

REF

INSTRUCTION

LAMP - console (See figure 9-426)

1шт.

22

REF

INSTRUCTION

BLOWER ASSEMBLY - cab air (See figure 9-432)

1шт.

27

REF

INSTRUCTION

LIGHT - flasher (See figure 4-092)

2шт.

28

REF

INSTRUCTION

LAMP - front flood (See figure 4-094)

1шт.

29

REF

INSTRUCTION

LAMP - rear flood (See figure 4-094)

1шт.

30

REF

INSTRUCTION

WIPER ASSEMBLY - windshield (See figure 9-448)

1шт.

31

REF

INSTRUCTION

WIPER ASSEMBLY - rear window (See figure 9-450)

1шт.

32

REF

INSTRUCTION

WIRE - rear window wiper (See figure 9-450)

1шт.
