(4-066) - FORWARD COMPONENT HARNESS

Запчасти Case IH 1896 (4-066) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

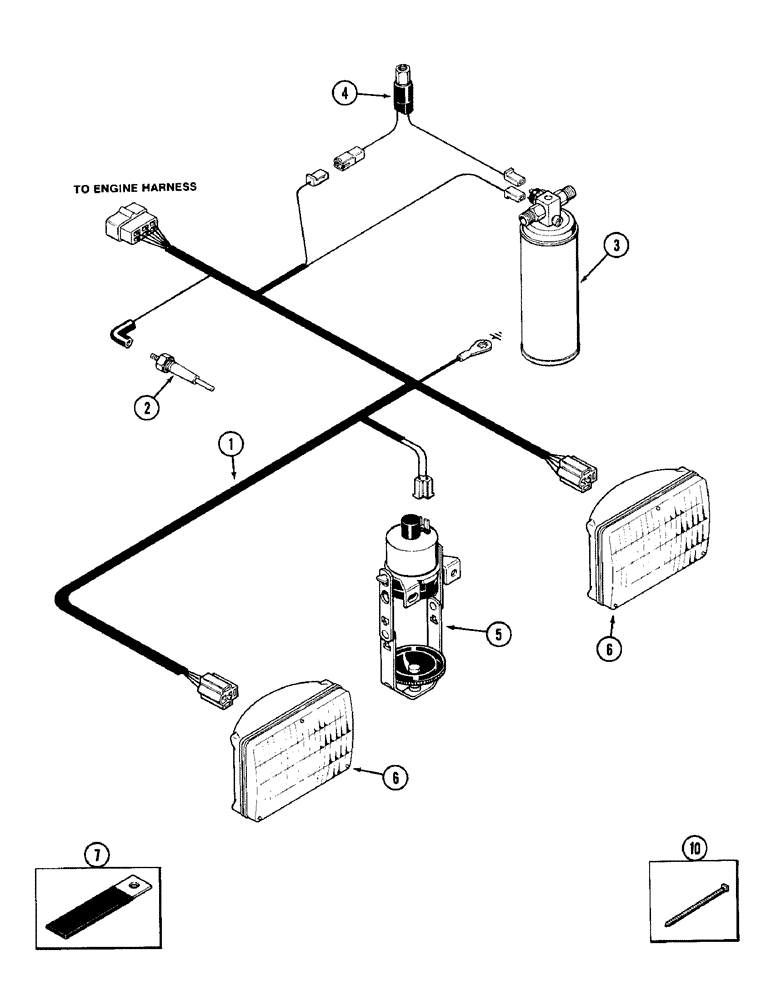

Схема запчастей Case IH 1896 - (4-066) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS
7
10
2
3
5
1
6
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A163110

HARNESS

- forward

1шт.

2

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

3

REF

INSTRUCTION

RECEIVER-DRIER - air conditioning (See figure 9-442)

1шт.

4

REF

INSTRUCTION

SWITCH - air conditioning cutout (See figure 9-442)

1шт.

5

A143381

SOLENOID

- ether start (See figure 2-10)

1шт.

6

A139458

LAMP

LIGHT - head (See figure 4-092)

2шт.

7

A149624

CLIP

- wire

3шт.

10

R38237

STRAP

- nylon, harness

7шт.
