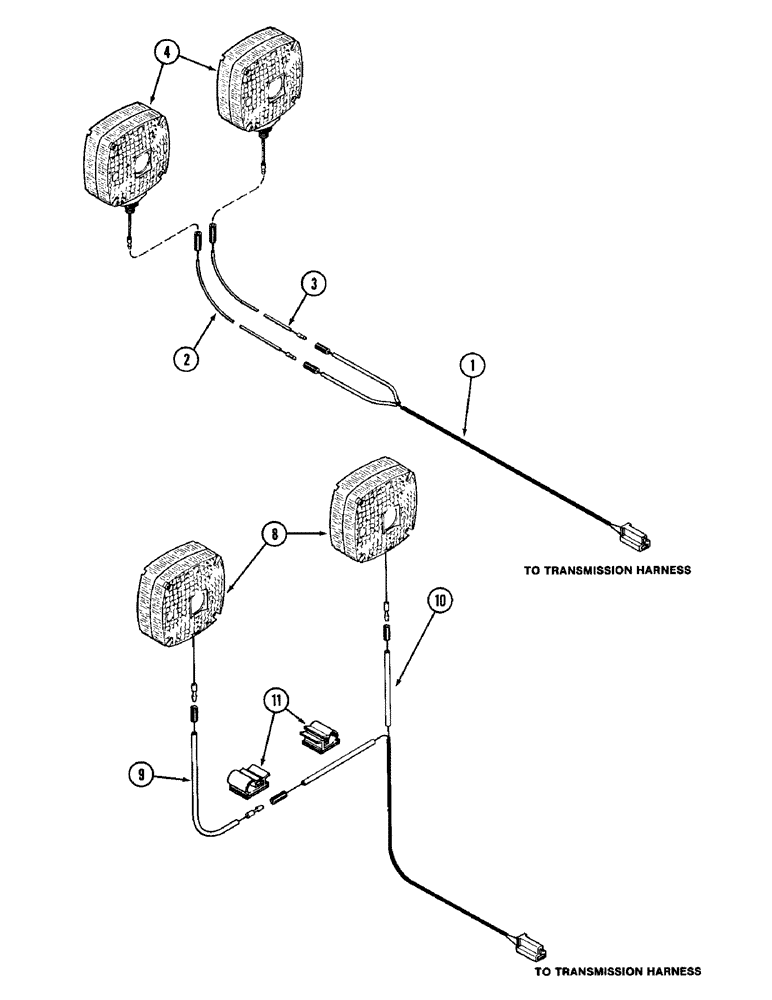

Запчасти Case IH 1896 (4-064) - PLATFORM LAMP WIRING (04) - ELECTRICAL SYSTEMS

1

A169888

HARNESS

- rear light

1шт.

2

A160292

ELECTRICAL WIRE

WIRE - right flasher, 90 inch long (2 286 mm)

1шт.

3

A160293

ELECTRICAL WIRE

WIRE - left flasher, 12 inch long (305 mm)

1шт.

4

REF

INSTRUCTION

LAMP - flasher (See figure 4-092)

2шт.

8

REF

INSTRUCTION

LAMP - flasher (See figure 4-092), tractor with 2 post rops

2шт.

9

A160292

ELECTRICAL WIRE

HARNESS - lamp, left, tractor with 2 post rops

1шт.

10

A16988

HARNESS - lamp, right, tractor with 2 post rops

1шт.

11

F43611

CLIP

CLAMP - harness, tractor with 2 post rops

2шт.
