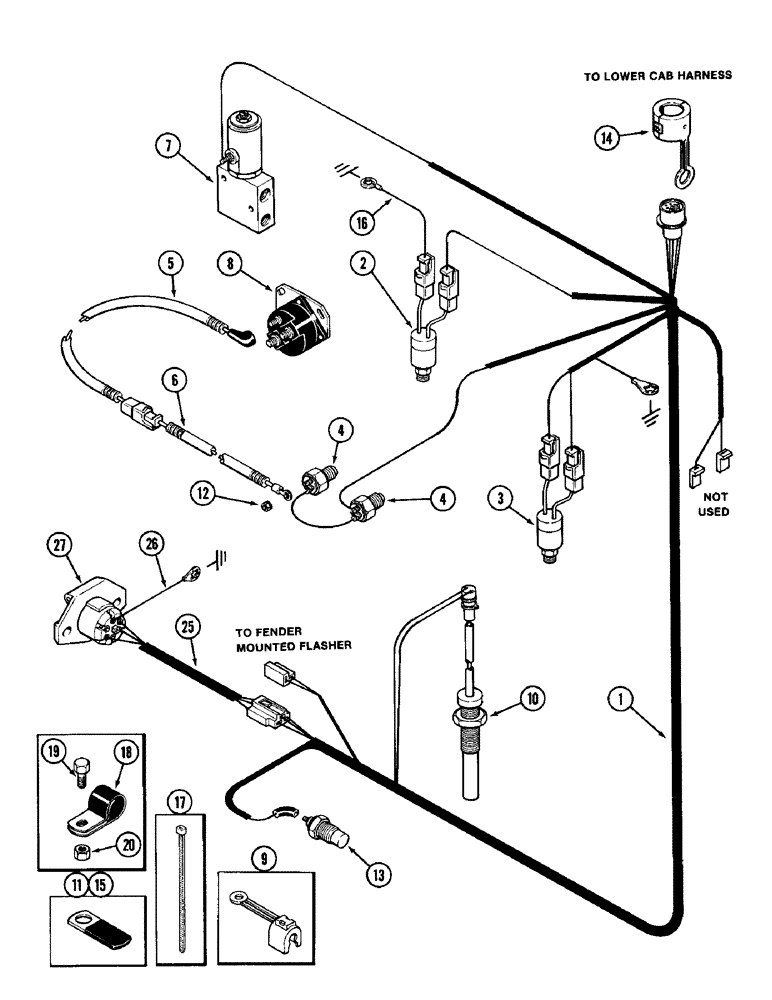

Запчасти Case IH 1896 (4-060) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A176764

HARNESS

- transmission

1шт.

2

A167895

SWITCH

- transmission filter pressure, 15 PSI (105 KPA)

1шт.

3

A162422

SWITCH

- transmission oil pressure

1шт.

4

A160237

SWITCH

- neutral start

2шт.

5

A169158

ELECTRICAL WIRE

WIRE - neutral start

1шт.

6

A169157

ELECTRICAL WIRE

WIRE - intermediate solenoid

1шт.

7

A176599

VALVE

- solenoid, differential lock

1шт.

8

REF

INSTRUCTION

SOLENOID - ignition (See figure 4-078)

1шт.

9

A169696

CLAMP

- sensor

1шт.

10

A158683

TRANSMITTER

SENSOR - speed

1шт.

11

A38066

CLIP

- wire to PTO housing

1шт.

12

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex Keps, no. 8-32

4шт.

13

A154283

SWITCH

- transmission temperature

1шт.

14

A163118

CLAMP

- harness connecting

1шт.

15

A37179

CLIP

- wire, neutral switch

1шт.

16

A167839

ELECTRICAL WIRE

WIRE - ground, pressure switch

1шт.

17

R38237

STRAP

- nylon tie, harness

2шт.

18

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - harness

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

A177485

HARNESS

- auxiliary outlet

1шт.

26

A163117

ELECTRICAL WIRE

WIRE - ground, outlet, auxiliary harness

1шт.

27

A177539

FITTING

CONNECTOR ASSEMBLY - seven point auxiliary outlet (See figure 4-076), harness

1шт.
