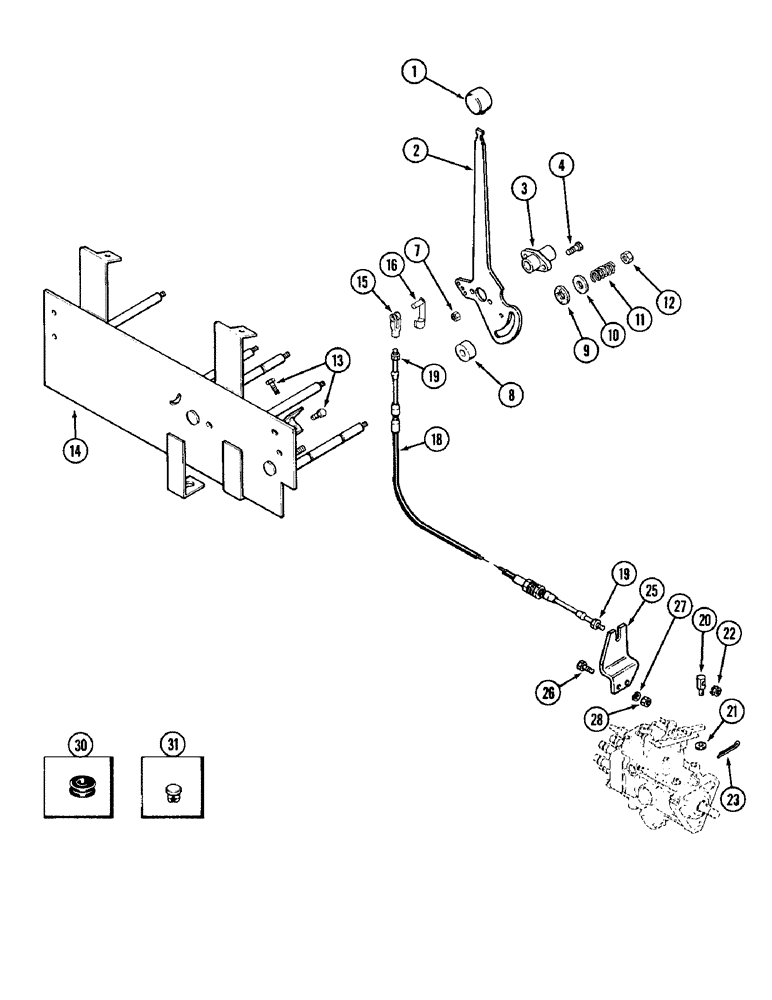

Запчасти Case IH 1896 (3-50) - THROTTLE CONTROL, 6T-590 DIESEL ENGINE (03) - FUEL SYSTEM

1

A177439

KNOB

- throttle lever (Red) (Replaces A167957)

1шт.

2

A180498

LEVER

- hand, throttle control (Replaces A141390)

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - pivot, hand lever

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A160622

BUSHING

SPACER - lever

1шт.

9

A61069

DISC

- friction

1шт.

10

195-2172

WASHER,7/16" x 1 1/4" x .083"

- flat, 7/16 x 1-1/4 x 5/64 inch (11 x 32 x 2 mm)

1шт.

11

A65583

SPRING

- pressure, fiction disc

1шт.

12

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex lock, 3/8 inch NC

2шт.

13

A67294

BOLT

- lock, lever adjustment

2шт.

14

REF

INSTRUCTION

SUPPORT - console control (See figure 9-340)

1шт.

15

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - control cable to lever

1шт.

16

A149683

PIN

- spring

1шт.

18

A137119

CABLE

ASSEMBLY - control, Includes: Ref. 19

1шт.

19

129-315

NUT,#10-32, LH

2шт.

20

A63014

PIVOT

- control cable throttle

1шт.

21

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

22

193-1000

NUT,Keps, w/LW,#10-32

- hex Keps, no. 10 NF

1шт.

23

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

25

A181157

BRACKET

- control cable

1шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

27

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

30

A145925

GROMMET

- control cables

1шт.

31

A162961

PLUG

- control cables, 11/16 inch ID (17 mm)

1шт.
