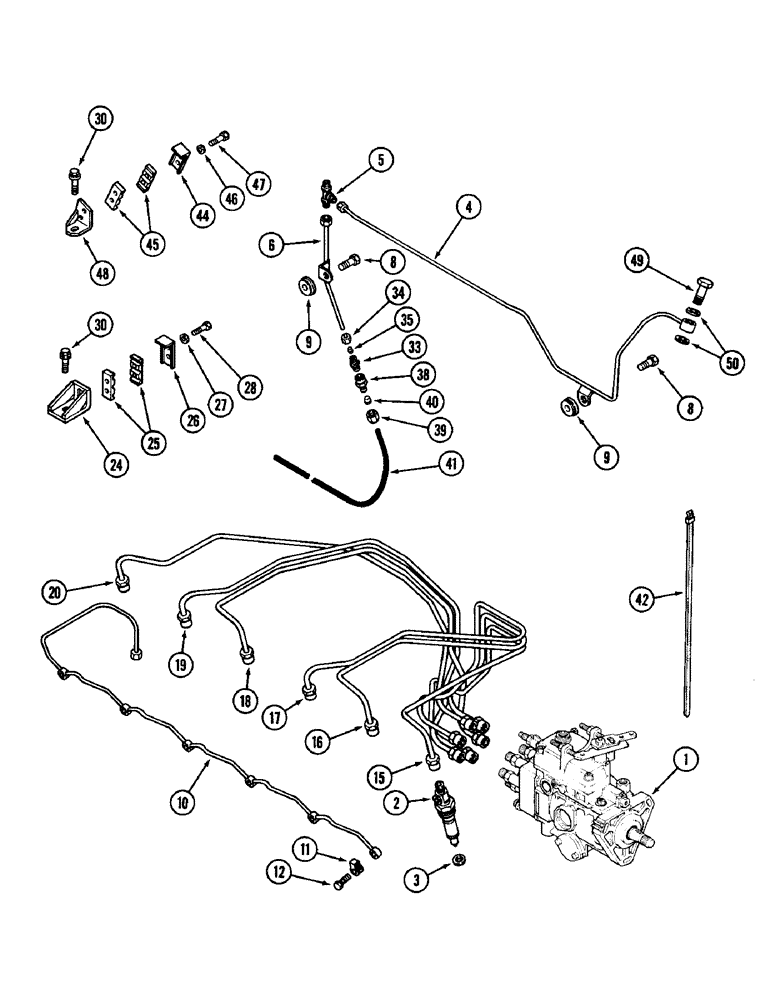

Запчасти Case IH 1896 (3-44) - FUEL INJECTORS AND LINES, 6T-590 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See figure 3-46)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See figure 3-48)

6шт.

3

J900808

SEAL

GASKET - injector

6шт.

4

J905705

FUEL TUBE,4.76 mm OD

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

Assy - connecting, 7/16"-24 thd (Remove and discard hex nuts and sleeves at assembly) 3/16", Flex Tubing

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

9

J900267

SEAL

O-RING - sealing, bolt

2шт.

10

J905691

MANIFOLD

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

WASHER - sealing, connecting

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Connector M6 x 1 x 14.3

6шт.

15

J903485

FUEL TUBE,64 mm OD x 747.1 mm L

TUBE ASSEMBLY - fuel injector, no. 1 cylinder

1шт.

16

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

TUBE ASSEMBLY - fuel injector, no. 2 cylinder

1шт.

17

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

TUBE ASSEMBLY - fuel injector, no. 3 cylinder

1шт.

18

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

TUBE ASSEMBLY - fuel injector, no. 4 cylinder

1шт.

19

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

TUBE ASSEMBLY - fuel injector, no. 5 cylinder

1шт.

20

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

TUBE ASSEMBLY - fuel injector, no. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube (Reference no. J906584)

1шт.

25

NSS

NOT SOLD SEPARAT

ISOLATOR - fuel tube (Reference no. J904520)

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE - clamp (Reference no. J904519)

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - flat, M5 (Reference no. J903723)

2шт.

28

NSS

NOT SOLD SEPARAT

BOLT - hex (Reference no. J903609)

2шт.

30

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- flanged hex, M8 x 26 mm

2шт.

33

222-601

FITTING,3/8"-24 x 1/8" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/16 tube 3/8-24 thread x 1/8 inch pt, Includes: Ref. 34 and 35

1шт.

34

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex, 3/16 tube 3/8"-24, 45º Fl, Comp

1шт.

35

222-651

SLEEVE,3/16" Tube, Comp

1шт.

38

222-2665

PORT

CONNECTOR ASSEMBLY - straight, 1/4 tube 7/16-24 thread x 1/8 inch pt, Includes: Ref. 39 and 40

1шт.

39

222-5180

TUBE NUT,7/16"-24

- hex, 1/4 tube OD x 7/16"-24

1шт.

40

222-5185

SLEEVE,1/4" Tube

- 1/4 " tube

1шт.

41

A60722

TUBE

- fuel, nylon 104 inch (Order L108947 and, Serial Range: cut-length)

1шт.

42

R38237

STRAP

- tie

1шт.

A77529

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 44 - 48

1шт.

44

NSS

NOT SOLD SEPARAT

BRACE - fuel (Reference no. J904519)

1шт.

45

NSS

NOT SOLD SEPARAT

ISOLATOR - fuel tube (Reference no. J904520)

2шт.

46

NSS

NOT SOLD SEPARAT

WASHER - flat, M5 (Reference no. J903723)

2шт.

47

NSS

NOT SOLD SEPARAT

SCREW - hex, M5 x 20 mm (Reference no. J903609)

2шт.

48

NSS

NOT SOLD SEPARAT

BRACE - fuel tube (Reference no. J906651)

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - banjo connector (See figure 3-46)

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - sealing (See figure 3-46)

1шт.
