Запчасти Case IH 1896 (3-42) - FUEL FILTER AND LIFT PUMP, 6T-590 DIESEL ENGINE (03) - FUEL SYSTEM

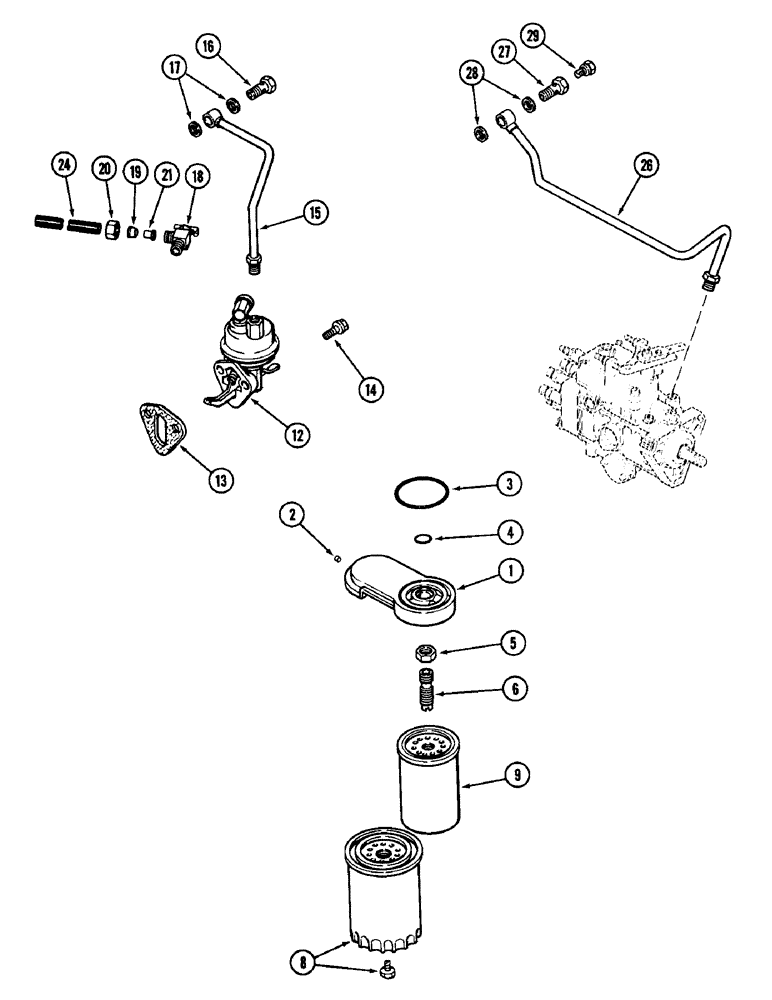

Схема запчастей Case IH 1896 - (3-42) - FUEL FILTER AND LIFT PUMP, 6T-590 DIESEL ENGINE (03) - FUEL SYSTEM
18
14
17
4
5
28
13
26
6
2
20
9
12
15
27
19
1
3
21
16
29
8
24

Артикул

Название

Примечание

Количество

1

J904362

HEAD

ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

A77432

PLUG

- expansion, 0.26 mm OD

1шт.

3

J903546

O-RING

- sealing, 17.2 mm OD

1шт.

4

J903846

O-RING

- sealing, 14 mm OD

1шт.

5

J903293

JAM NUT

- hex, M16 x 1.5 mm

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel filter

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - fuel, primary (Reference no. J903410)

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - fuel, secondary (Reference no J903640)

1шт.

12

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J904044

GASKET

- mounting, pump

1шт.

14

J900631

FLANGE BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

BOLT - flanged hex, M8 x 25 mm

2шт.

15

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE ASSEMBLY - fuel supply (Replaces J904412)

1шт.

16

J903035

BANJO BOLT

BOLT - banjo hex, M12 x 24 mm special

1шт.

17

J903037

PACKING RING

WASHER - sealing, 0.5 mm ID

2шт.

18

A62354

VALVE

ASSEMBLY - fuel shutoff, Includes: Ref. 19 and 20

1шт.

19

222-5186

SLEEVE,3/8" Tube

- 3/8 inch tube

1шт.

20

222-5181

NUT,9/16"-24

NUT - hex, 3/8 tube 9/16-24 inch thread

1шт.

21

222-2446

INSERT,1/4" Tube

- nylon tube

1шт.

24

A62320

TUBE

- fuel supply, 3/8 OD x 105 inch (Order A167912 and, Serial Range: cut-length)

1шт.

26

J905433

FUEL TUBE,8 mm OD x 364, 91 mm L

TUBE ASSEMBLY - fuel supply

1шт.

27

J905860

BANJO BOLT

BOLT - connector, banjo hex special

1шт.

28

J903037

PACKING RING

WASHER - sealing, 0.5 mm ID

2шт.

29

J905860

BANJO BOLT

BOLT - hex special, vent

1шт.

Выбрано товаров: 24
