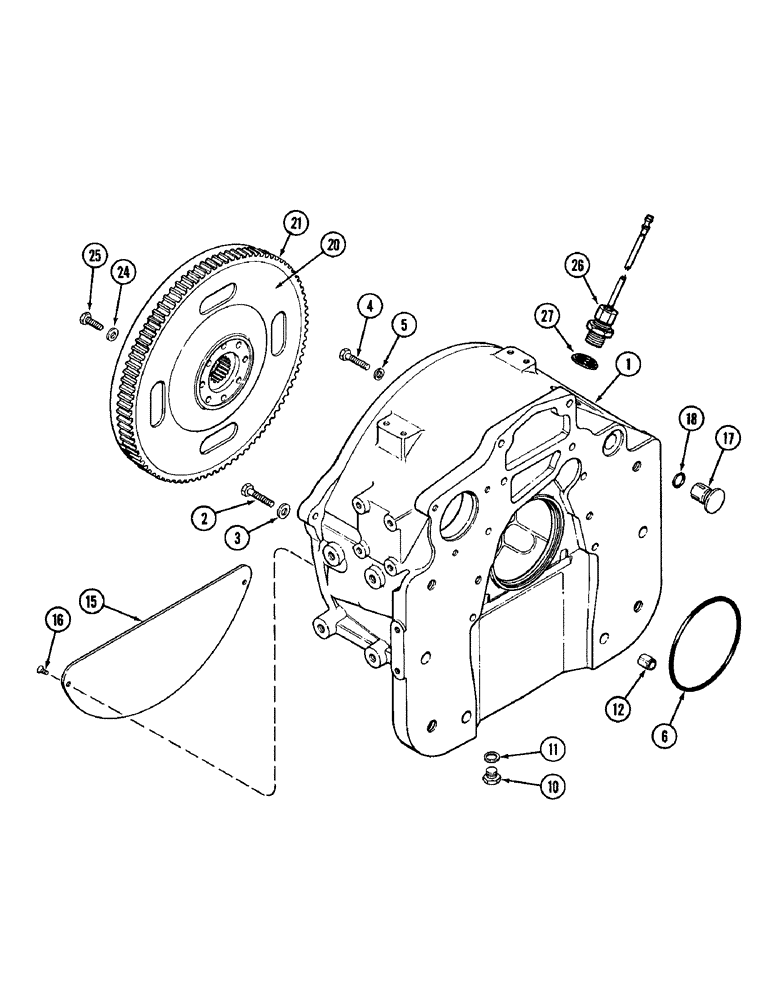

Запчасти Case IH 1896 (2-32) - FLYWHEEL AND HOUSING, 6T-590 DIESEL ENGINE (02) - ENGINE

1

A179398

HOUSING

- flywheel

1шт.

2

826-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, M12 x 55 mm

8шт.

3

A157918

WASHER

- flat, housing bolt

8шт.

4

826-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, M12 x 50 mm

2шт.

5

892-1112

LOCK WASHER,M12

WASHER - lock, M12

2шт.

6

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

- housing to carrier

1шт.

10

A140222

PLUG

- drain

1шт.

11

A58608

GASKET

- drain plug

1шт.

12

A168288

PIN

DOWEL - locating

2шт.

15

A157973

BAFFLE

- clutch oil

1шт.

16

A168131

HEX SOC SCREW,Flat Hd, M4 x 10mm, Gr 8.8

SCREW - metric flat head socket

2шт.

17

J904470

PLUG

- housing o-ring

1шт.

18

J904469

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - ring, plug

1шт.

20

J905032

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 21

1шт.

21

A27920

GEAR

- ring, flywheel

1шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

25

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex cap, M12 x 32 mm

8шт.

26

A162939

MAGNET

SENSOR - magnetic, engine RPM

1шт.

27

A163366

SEAL

- magnetic sensor

1шт.
