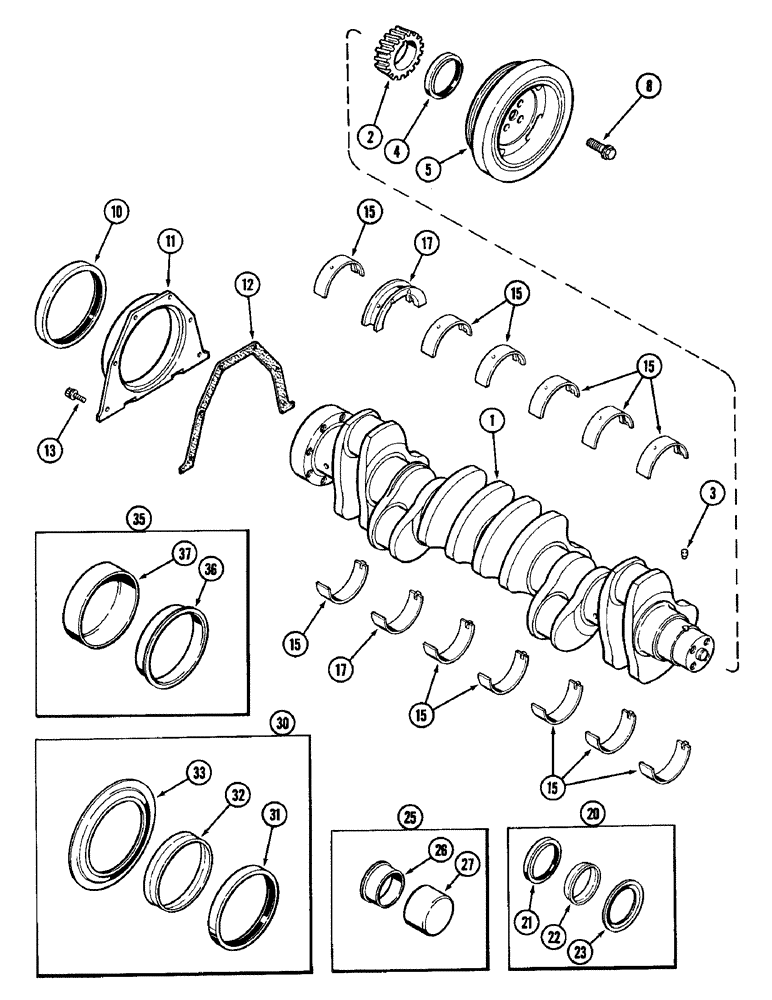

Запчасти Case IH 1896 (2-30) - CRANKSHAFT, 6T-590 DIESEL ENGINE (02) - ENGINE

1

JR908032

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - engine (Remanufactured) (North America only), Includes: Ref. 2 and 3

1шт.

1

JC908032

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft assemnly (Use this number for intransit core for credit)

1шт.

1

J908032

CRANKSHAFT

ASSEMBLY - engine (New) (Replaces J905730), Includes: Ref. 2 and 3

1шт.

2

J901258

GEAR

- crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel (Replaces J904483)

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order ref 20) (Reference no. J900709)

1шт.

5

J907190

GROOVED PULLEY

PULLEY - crankshaft dampener

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- flanged hex, M12 x 36 mm

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear (Order ref 30) (Reference no. J904090)

1шт.

11

J906526

RETAINER

- rear seal

1шт.

12

J901019

GASKET

- seal retainer

1шт.

13

J900627

BOLT,Hex Flg, M6 x 14mm, Cl 8.8

- flanged hex, M6 x 14 mm

6шт.

15

A77405

CRANKSHAFT BEARING

BEARING KIT - main (Set) Upper and lower, standard

6шт.

15

A77472

BEARING SET

BEARING KIT - main (Set) Upper and lower, 0.25 mm oversize

6шт.

15

A77474

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.5 mm oversize

6шт.

15

A77476

BEARING SET

BEARING KIT - main (Set) Upper and lower, 0.75 mm oversize

6шт.

15

A77478

BEARING SET

BEARING KIT - main (Set) Upper and lower, 1.0 mm oversize

6шт.

17

A77406

CRANKSHAFT BEARING

BEARING KIT - main (Set) Upper and lower, standard

1шт.

17

A77473

THRUST BEARING

BEARING KIT - thrust, main (Set) Upper and lower, 0.25 mm oversize

1шт.

17

A77475

THRUST BEARING

BEARING KIT - thrust, main (Set) Upper and lower, 0.5 mm oversize

1шт.

17

A77477

THRUST BEARING

BEARING KIT - thrust, main (Set) Upper and lower, 0.75 mm oversize

1шт.

17

A77479

THRUST BEARING

BEARING KIT - thrust, main (Set) Upper and lower, 1.0 mm oversize

1шт.

20

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Reference no. J900709)

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

WEAR SLEEVE KIT - crankshaft front, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J904354

GASKET KIT

SEAL KIT - oil, crankshaft rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (Reference no. J904090)

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - instllation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
