(2-26) - CAMSHAFT, 6T-590 DIESEL ENGINE

Запчасти Case IH 1896 (2-26) - CAMSHAFT, 6T-590 DIESEL ENGINE (02) - ENGINE

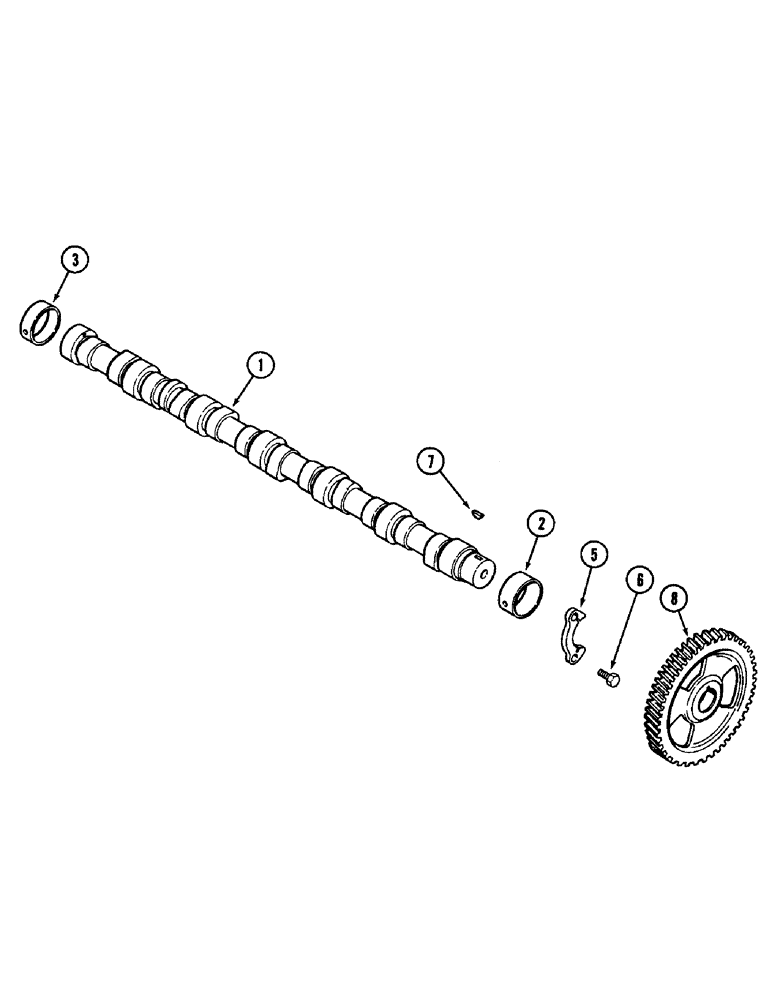

Схема запчастей Case IH 1896 - (2-26) - CAMSHAFT, 6T-590 DIESEL ENGINE (02) - ENGINE
6
8
5
7
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J907447

CAMSHAFT

- engine

1шт.

2

J901306

BUSHING

- camshaft front, standard

1шт.

2

J904369

BUSHING

- camshaft front, oversize

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft (See note)

6шт.

5

J901761

SUPPORT

- thrust, camshaft

1шт.

6

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, M9 x 20 mm

2шт.

7

J902332

KEY

- camshaft gear

1шт.

8

J907431

CAMSHAFT BEARING

GEAR - camshaft

1шт.
