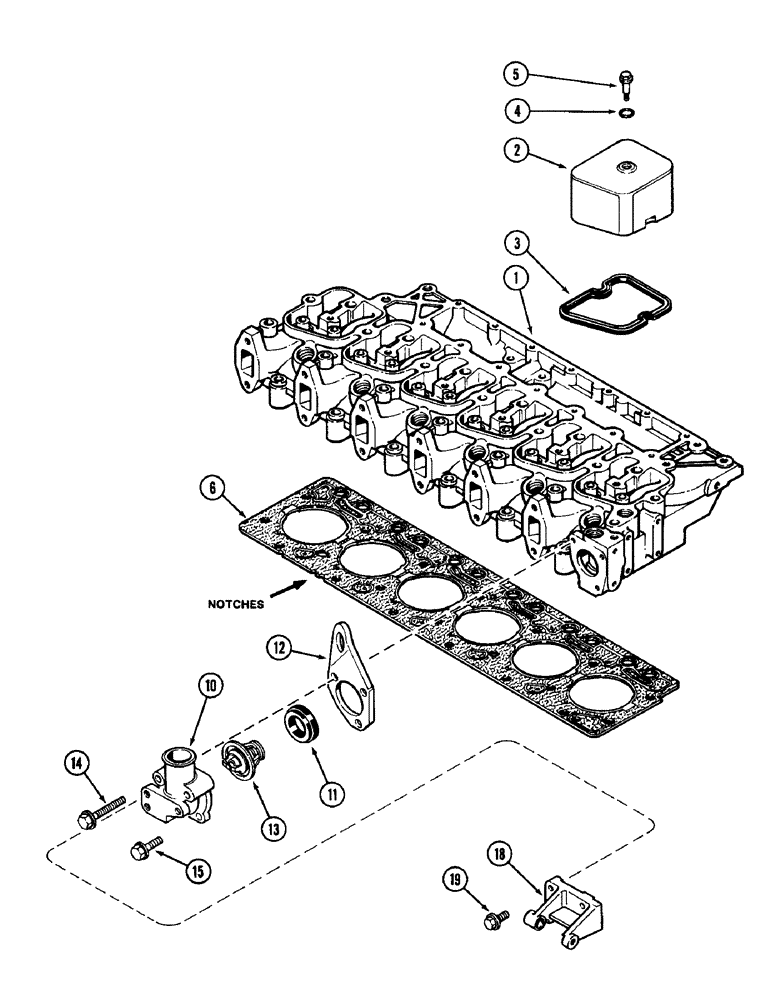

Запчасти Case IH 1896 (2-20) - CYLINDER HEAD COVERS, 6T-590 DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder (See figure 2-22)

1шт.

2

J902604

COVER

- valve rocker

6шт.

3

J902666

GASKET

SEAL - rocker cover

6шт.

4

J901837

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - o-ring

6шт.

5

J907049

BOLT,Hex

- flanged hex, M8 x 21.25 mm

6шт.

6

J907057

CYLINDER HEAD GASKET

- cylinder head (Standard) (Without notches)

1шт.

6

J907058

GASKET

- cylinder head, 0.040 inch (1 mm) Over bore, 0.005 inch (0.43 mm) Thickness (2 notches)

1шт.

6

J907059

GASKET

- cylinder head, .040 inch (1 mm) Over bore, 0.020 inch (.050 mm) Thickness (3 nothces)

1шт.

10

J903756

HOUSING

- thermostat

1шт.

11

J903301

GASKET

- housing, thermostat

1шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

J906700

THERMOSTAT

- water, 95 degrees C (203 degrees F), housing

1шт.

14

J903096

FLANGE BOLT,Hex, M8 x 70mm, Cl 8.8

BOLT - flanged hex, M8 x 70 mm, thermostat and housing

2шт.

15

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT - flanged hex, M8 x 35 mm, thermostat and housing

1шт.

18

J908774

SUPPORT

- alternator mounting, thermostat and housing

1шт.

19

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- flanged hex, M8 x 25 mm, thermostat and housing

3шт.
