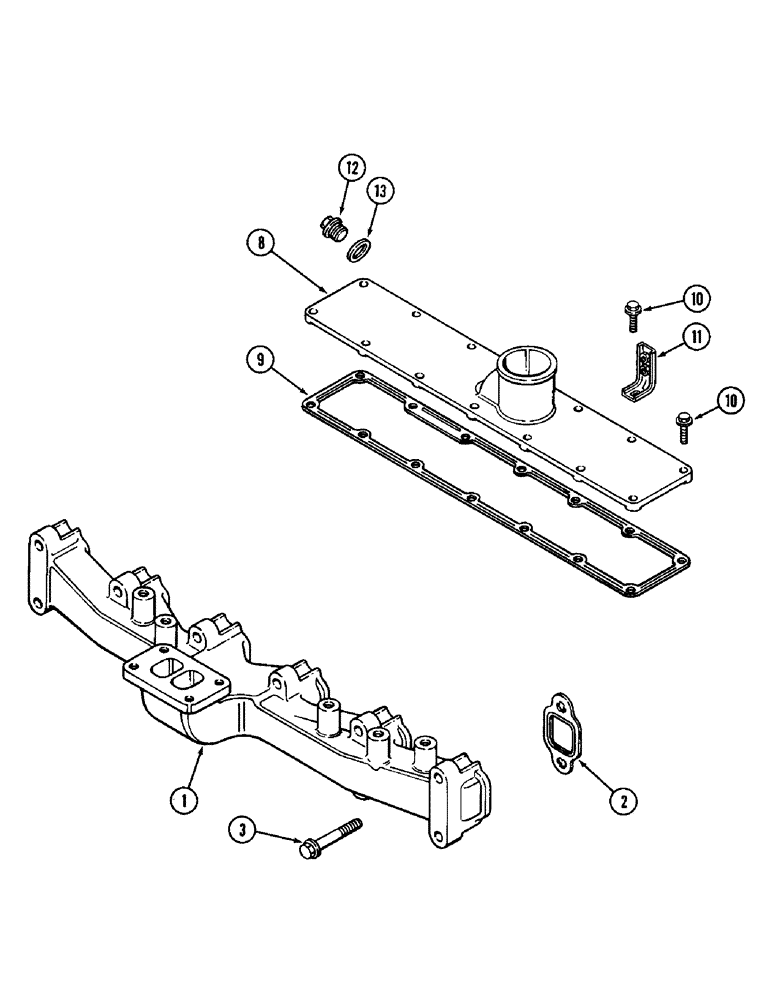

Запчасти Case IH 1896 (2-18) - MANIFOLDS, 6T-590 DIESEL ENGINE (02) - ENGINE

1

J902347

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- mounting, manifold, exhaust

6шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - hex flanged, M10 x 65, Exhaust

12шт.

8

J904862

COVER

- intake manifold

1шт.

9

J907036

GASKET

- intake cover (Replaces J902002)

1шт.

10

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- flanged hex, M8 x 16 mm

14шт.

11

NSS

NOT SOLD SEPARAT

BRACE - fuel line (See figure 3-44)

2шт.

12

J907185

PLUG

- manifold

1шт.

13

J906773

WASHER

- sealing, plug

1шт.
