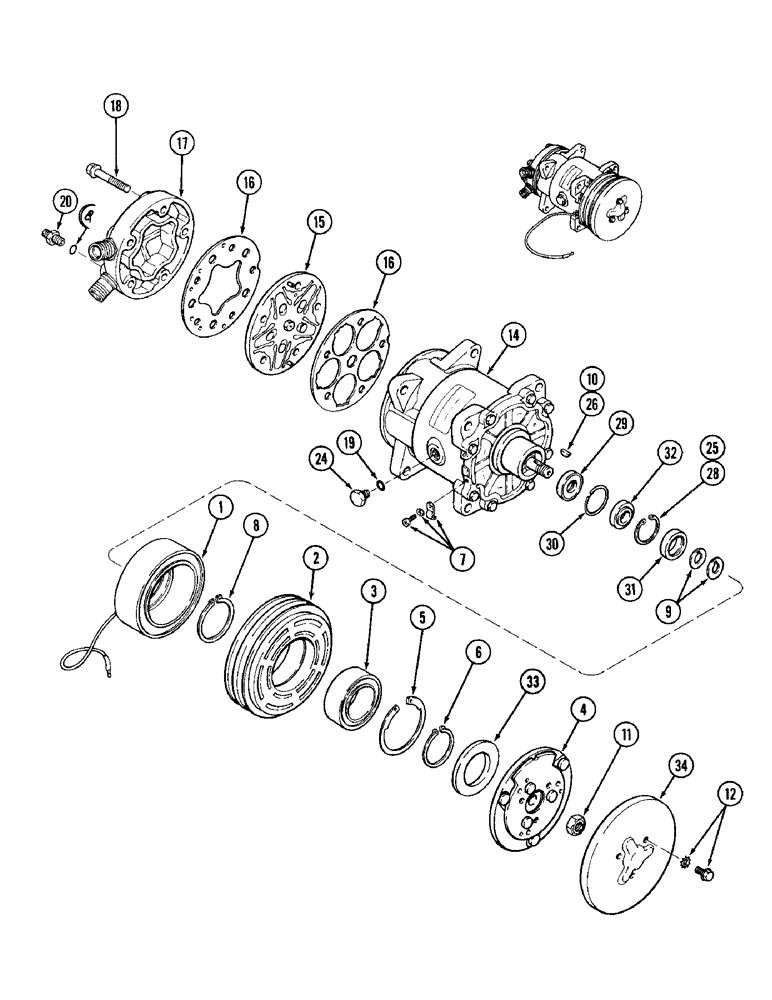

Запчасти Case IH 1896 (9-446) - AIR CONDITIONING, AIR COMPRESSOR (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A177068
AIRCOND. COMPRESSOR
ASSEMBLY - air conditioning, Includes: Ref. 1 - 34
1шт.
A177068R
REMAN-A/C COMPRESSOR
1896 DIESEL PRIOR TO S/N 17895000 (1/84-12/86)
1шт.
A177068C
CORE-DISTRIB KIT-FUE
Return Number
1шт.
A49676
CLUTCH ASSEMBLY
- compressor, Includes: Ref. 1 - 12
1шт.
1
A49659
COIL ASSY.
COIL ASSEMBLY - field, 12 volt
1шт.
2
A49660
PULLEY ASSY.
PULLEY ASSEMBLY - drive, two groove, Includes: Ref. 3 - 5
1шт.
3
A49663
BALL BEARING,40 mm ID x 62 mm OD x 24 mm
BEARING - pulley
1шт.
4
A49677
PLATE
- front
1шт.
5
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
A49673
KIT
ACCESSORY KIT - clutch, Includes: Ref. 6 - 12
1шт.
6
NSS
NOT SOLD SEPARAT
RING - snap, pulley
1шт.
7
NSS
NOT SOLD SEPARAT
CLAMP ASSEMBLY - lead wire
1шт.
8
NSS
NOT SOLD SEPARAT
RING - snap, clutch
1шт.
9
NSS
NOT SOLD SEPARAT
SHIM - clutch
1шт.
10
NSS
NOT SOLD SEPARAT
KEY - clutch drive
1шт.
11
NSS
NOT SOLD SEPARAT
NUT - retainer
1шт.
12
NSS
NOT SOLD SEPARAT
SCREW - retainer
1шт.
A49672
COMPRESSOR
ASSEMBLY - field, Includes: Ref. 14 - 34
1шт.
14
NSS
NOT SOLD SEPARAT
BLOCK ASSEMBLY - compressor
1шт.
15
A49662
PLATE
ASSEMBLY - valve, Includes: Ref. 16
1шт.
16
A49668
GASKET KIT
- valve plate
1шт.
17
A49661
HEAD (CYLINDER)
HEAD - cylinder (Includes Ref 16)
1шт.
18
A49669
SCREW,Cylinder
BOLT - hex flanged, head
5шт.
19
A49666
O-RING
- rubber
3шт.
20
A49670
PORT
- service
2шт.
24
A49667
PLUG
- oil filler
1шт.
25
A49664
CIRCLIP
RING - snap, seal seat
1шт.
26
A49671
KEY
- shaft, compressor
1шт.
A49665
SEAL KIT
SEAL KIT - compressor, Includes: Ref. 28 - 32
1шт.
28
A49664
CIRCLIP
RING - snap
1шт.
29
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
30
NSS
NOT SOLD SEPARAT
O-RING - housing
1шт.
31
NSS
NOT SOLD SEPARAT
RING - felt
1шт.
32
NSS
NOT SOLD SEPARAT
SEAT - seal, shaft
1шт.
33
A49674
BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm
COVER - dust, bearing
1шт.
34
A49675
COVER
- dust, clutch
1шт.
Выбрано товаров: 36
