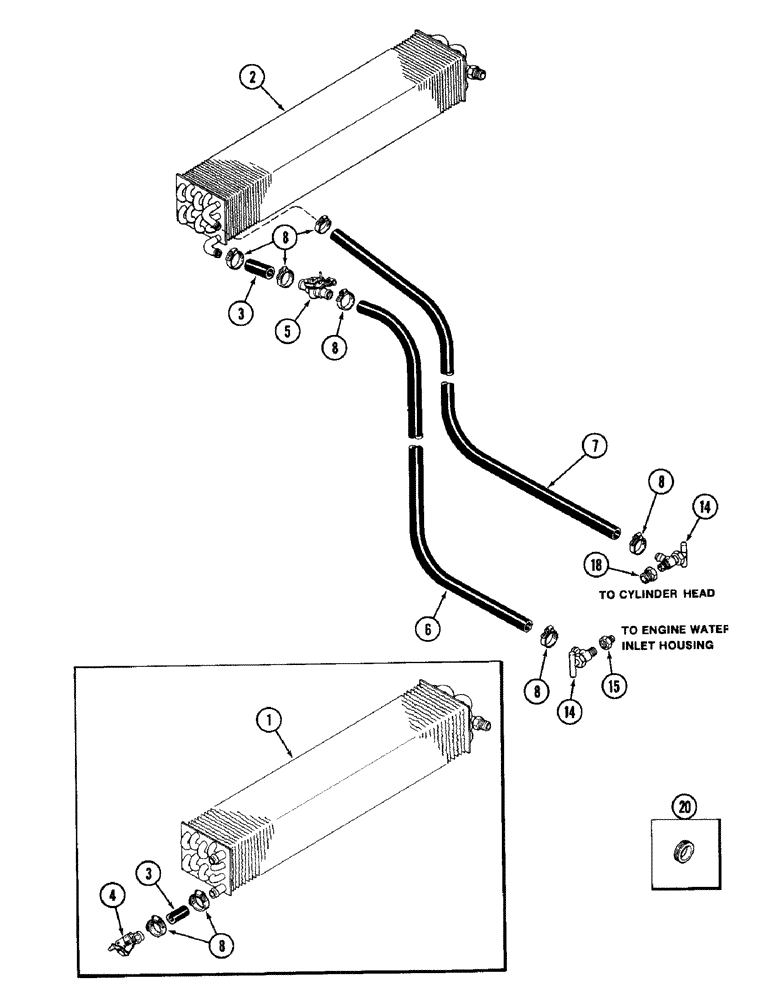

Запчасти Case IH 1896 (9-436) - CAB, HEATER (09) - CHASSIS/ATTACHMENTS

1

F64906

HEATER

CORE - heater and air conditioning (Order Ref 2 and 5)

1шт.

Prior to cab serial no. 12104351.

1шт.

2

F66203

HEATER ASSY.

CORE - heater and air conditioning

1шт.

Cab serial no. 12104351 and after.

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - core to valve, 2 inch black (51 MM) (Order A42610) (Reference No. F64008)

1шт.

4

F63865

VALVE

- control, heater

1шт.

Prior to cab serial no. 12104351.

1шт.

5

F66209

VALVE

- control, heater

1шт.

Cab serial no. 12104351 and after.

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet, black, 134 inch (3403 MM) (Order A42610) (Reference No. F64218)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet black with red, 120 inch (3 048 MM) (Order A42610) (Reference No. F64889)

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 x 1-1/16 inch (14 x 27 MM)

7шт.

A42610

LARGE HOSE

HOSE - 5/8 ID (16 MM) x 1 inch OD (25 MM) x 50 feet roll (15.2 M) (Cut to desired length)

1шт.

14

A16764

VALVE

- shut off

2шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 x 3/8 inch PT

1шт.

18

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

2шт.

20

F64485

GROMMET

- hose

2шт.
