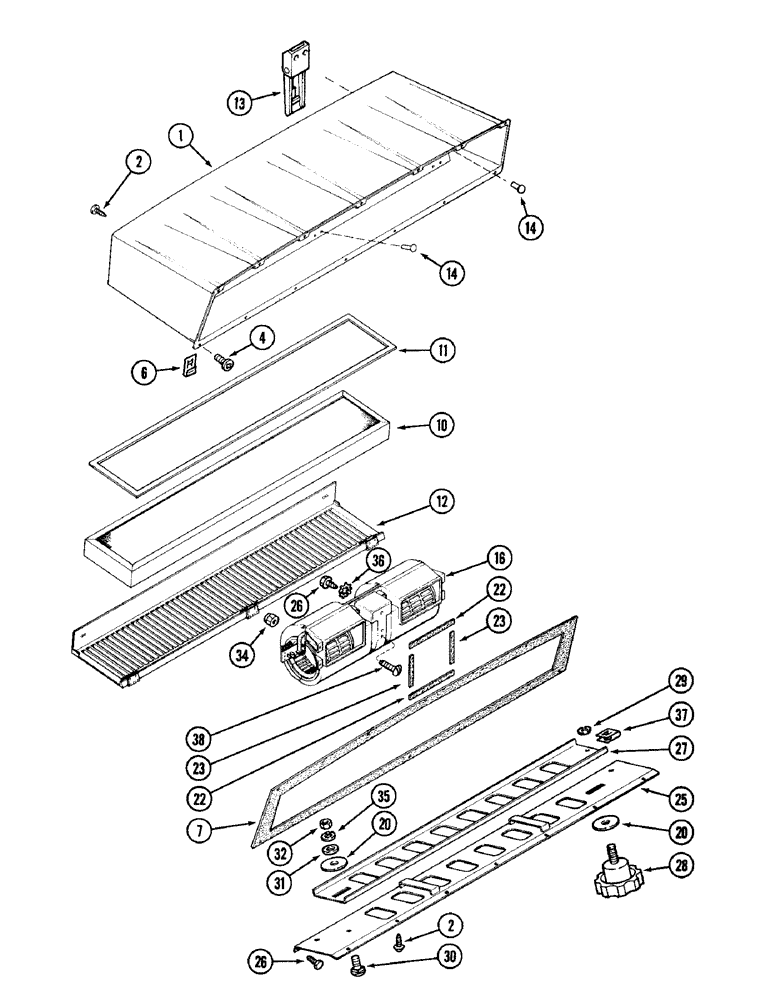

Запчасти Case IH 1896 (9-430) - CAB, AIR FILTER AND BLOWER HOUSING (09) - CHASSIS/ATTACHMENTS

1

F64721

HOUSING

- filter and blower

1шт.

2

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - round head self tapping, No. 10-16 x 3/4 inch

14шт.

4

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

- washer head hex slotted, No. 10-32 x 1 inch

7шт.

6

F64990

NUT

- J type, No. 10-24

7шт.

7

F64602

SEAL

SEAL -, Serial Range: housing-cab

1шт.

10

F64318

AIR FILTER

FILTER - air, cab

1шт.

11

F63669

SEAL

- housing, filter

1шт.

12

F98302

COVER

ASSEMBLY - filter

1шт.

13

F64066

LATCH

- filter cover

2шт.

14

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

- 1/8 inch pop

10шт.

16

REF

INSTRUCTION

BLOWER - cab air (See Figure 9-434)

1шт.

20

F64867

WASHER

- plate, 11/32 inch ID (9 MM)

2шт.

22

F64817

SEALING STRIP

SEAL - blower (Order F64119 and, Serial Range: cut-length)

4шт.

23

F64818

SEALING STRIP

SEAL - blower (Order F64119 and, Serial Range: cut-length)

4шт.

25

F64933

PLATE

- circulating, air

1шт.

26

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex head self tapping, No. 10-16 x 1/2 inch

10шт.

27

F64930

DOOR

- circulating, air

1шт.

28

F64253

KNOB

- door

1шт.

29

T39518

SNAP RING,#25, Ext

Ring, Snap, , knob #25, Ext

1шт.

30

111-132

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

31

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 18 x 2 MM)

1шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

1шт.

34

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

36

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

37

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- speed, U type

1шт.

38

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - slotted head, No. 8-32 x 3/4 inch

1шт.
