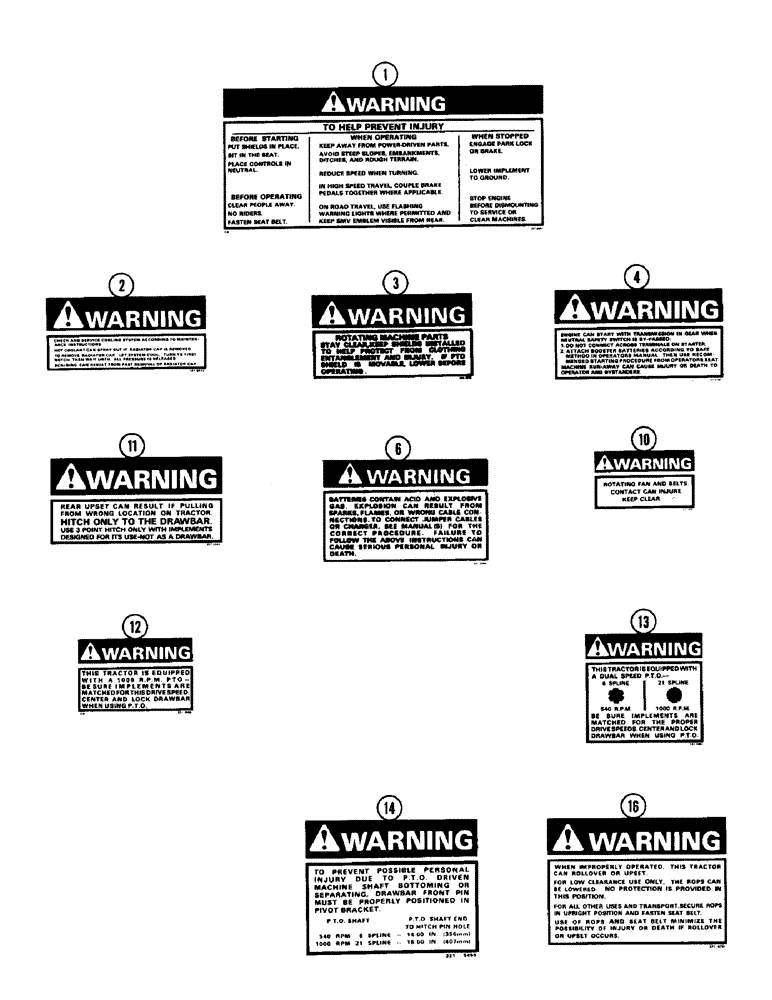

Запчасти Case IH 1896 (9-394) - DECALS, SAFETY (09) - CHASSIS/ATTACHMENTS

A67551

DECAL

KIT - safety decal, Includes: Ref. 1 - 14

1шт.

1

321-6641

DECAL

- operating instructions

1шт.

2

321-6672

DECAL

- radiator coolant

1шт.

3

321-6715

DECAL

- PTO

1шт.

4

321-3709

DECAL

- starting

1шт.

6

321-6714

DECAL

- battery cables and acid

1шт.

10

321-3596

DECAL

- fan belt

2шт.

11

321-3845

DECAL

- drawbar and hitch

1шт.

12

321-3900

DECAL

- 1000 RPM PTO (Not used)

1шт.

13

321-3901

DECAL

- dual speed PTO

1шт.

14

321-5459

DECAL

- hitch pin warning

1шт.

16

321-6717

DECAL

- warning, rollover (2 post ROPS)

1шт.

A46520

DECAL

KIT - decal, French language, includes all decals below

1шт.

Kit also includes items listed on Figure 9-390 or 9-392.

1шт.

1

321-6660

DECAL

- operating instructions

1шт.

2

321-6701

DECAL

- cooling system

1шт.

3

321-6647

DECAL

- rotating PTO

1шт.

4

321-5581

DECAL

- starting

1шт.

6

321-6719

DECAL

- battery cables and acid

1шт.

10

321-5604

DECAL

- fan belt

2шт.

11

321-5580

DECAL

- hitch instruction

1шт.

12

321-5621

DECAL

- 1000 RPM PTO

1шт.

13

321-5585

DECAL

- dual speed, 540/1000 RPM

1шт.

14

321-5791

DECAL

- hitch pin warning

1шт.

321-5583

DECAL

- operating instruction (Not used this application)

1шт.

321-5619

DECAL

- operating instruction (Not used this application)

1шт.

321-5790

DECAL

- implement lift (See Figure 9-336)

1шт.

321-5735

DECAL

- protective structure instructions

1шт.
