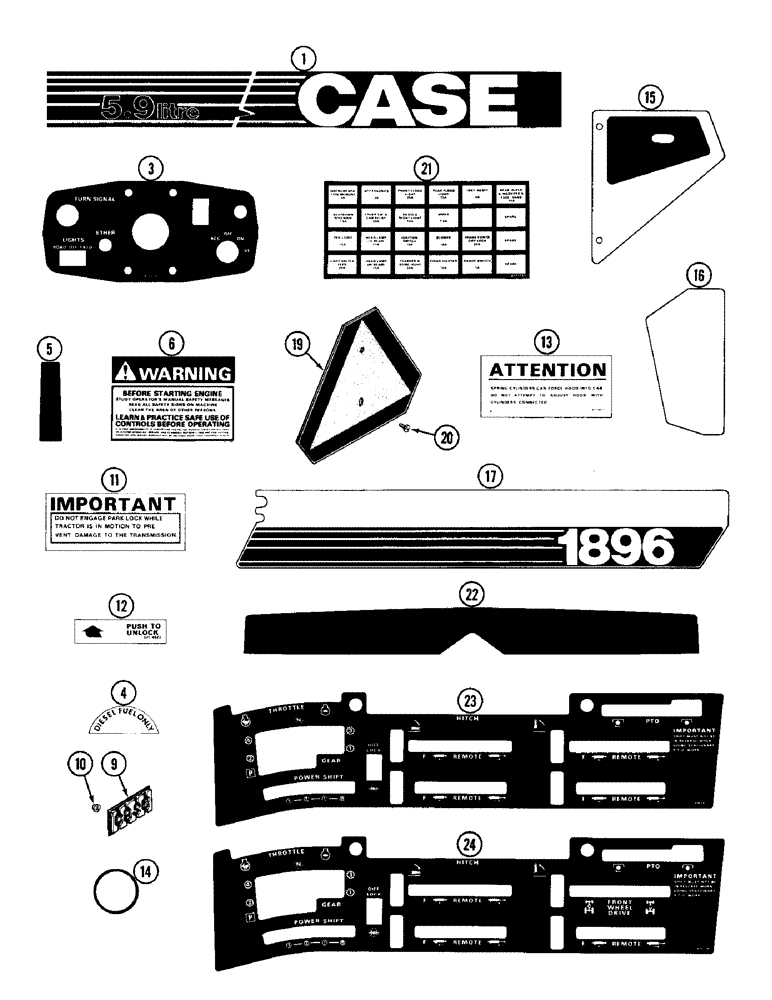

Запчасти Case IH 1896 (9-390) - TRACTOR DECALS, CASE (09) - CHASSIS/ATTACHMENTS

A67612

DECAL

KIT - tractor, Includes: Ref. 1 - 16

1шт.

1

A177130

DECAL

- Case stripe, right hand

1шт.

1

A177131

DECAL

- Case stripe, left hand

1шт.

3

A169264

DECAL

- control panel

1шт.

4

321-4493

DECAL

- diesel fuel

1шт.

5

321-4142

DECAL

- sight line

1шт.

6

321-3705

DECAL

- starting instructions

1шт.

9

321-4739

EMBLEM

MEDALLION - Case trademark

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - medallion retaining, self tapping, 1/4 inch

2шт.

11

321-5264

DECAL

- park lock

1шт.

12

321-4622

DECAL

- hood unlatch

1шт.

13

321-4621

DECAL

- tilt hood adjust

2шт.

14

A167962

DISC

PLATE - flasher, insert (If equipped)

1шт.

15

A176302

DECAL

- rear fender, RH rear

1шт.

15

A176301

DECAL

- rear fender, LH rear

1шт.

16

A176290

DECAL

- rear fender, RH front

1шт.

16

A176289

DECAL

- rear fender, LH front

1шт.

17

A176564

DECAL

- 1896 Model No., right side

1шт.

17

A176563

DECAL

- 1896 Model No., left side

1шт.

19

A163604

DECAL

EMBLEM - SMV (Order D123347)

1шт.

20

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- Phillips pan head, 1/4 NC x 3/8 inch

2шт.

21

A177790

DECAL

- fuse location

1шт.

22

321-6446

DECAL

- cab roof

1шт.

23

A167977

DECAL

- console, 12 speed

1шт.

24

A167978

DECAL

- console, 12 speed (MFD Tractor)

1шт.

A46520

DECAL

KIT - decal, French language, includes all decals below

1шт.

4

321-5793

DECAL

- diesel fuel

1шт.

6

321-6646

DECAL

- starting instructions

1шт.

11

321-5789

DECAL - park lock engagement

1шт.

12

321-5625

DECAL

- hood unlatch

1шт.

13

321-5624

DECAL - tilt hood adjusting

2шт.

321-6206

DECAL - steering console (Not used this application)

1шт.

321-5792

DECAL - 12 speed chart (Not used this application)

1шт.

321-5792 12 SPEED CHART, IN ENGLISH 321-5653.

1шт.

321-5627

DECAL - 12 speed chart (Not used this application)

1шт.

321-5626

DECAL - 8 speed chart (Not used this application)

1шт.

321-5861

DECAL - fuse location (On firewall)

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover) (See Figure 4-056)

1шт.
