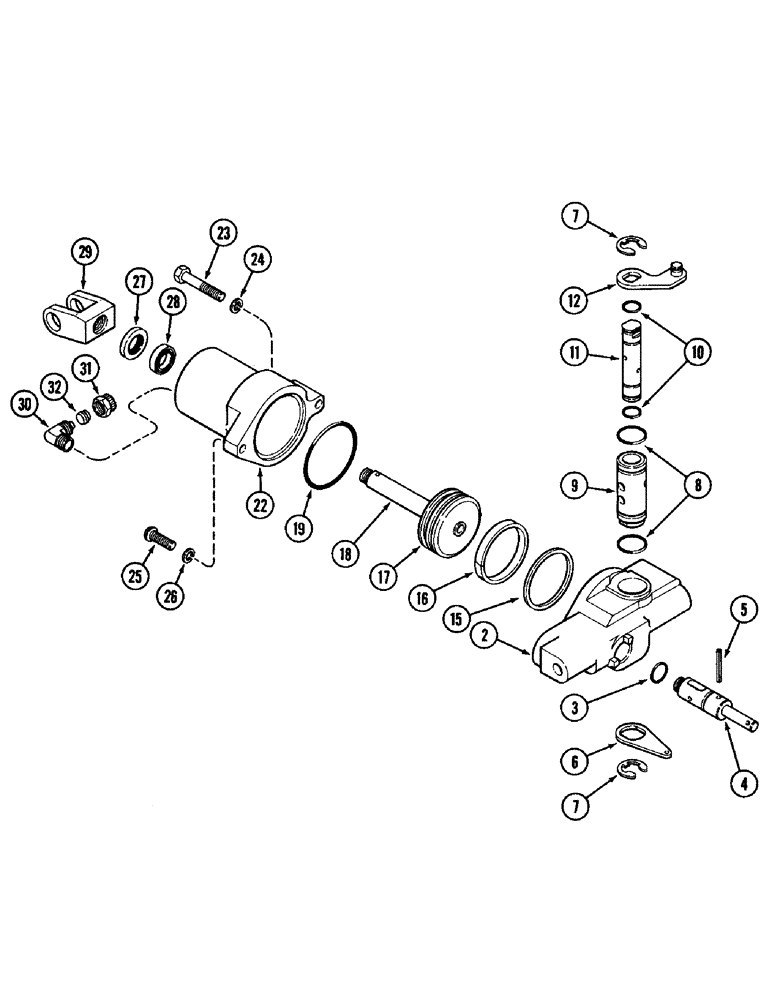

Запчасти Case IH 1896 (9-386) - SEAT, AIR/OIL SUSPENSION, CYLINDER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

A49828

CYLINDER

ASSEMBLY - module, Includes: Ref. 2 - 32 and o-ring

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - cylinder

1шт.

3

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- damper spool

1шт.

4

A49782

SPOOL

- damper

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

6

A49780

LEVER

- push valve

1шт.

7

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.

8

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- valve sleeve, outer (Order A42597)

2шт.

9

NSS

NOT SOLD SEPARAT

VALVE - push

1шт.

10

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- valve spool, inner

2шт.

11

A49781

SPOOL

- push valve

1шт.

12

A49783

LEVER

- push valve spool

1шт.

15

A49687

RING

SEAL - piston ring

1шт.

16

A49685

RING

- piston wear

1шт.

17

G102152

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- piston seal ring

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

19

S5735

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

- cylinder barrel

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - cylinder barrel

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - hex, retaining

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT - special, retaining

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

27

A49684

WIPER SEAL

- piston rod wiper

1шт.

28

A49686

SEAL

- piston rod

1шт.

29

NSS

NOT SOLD SEPARAT

CLEVIS ASSEMBLY - cylinder

1шт.

30

A49785

ELBOW

- 90 degree, brass

1шт.

31

A49784

CONNECTOR, ELEC

CONNECTOR - special nut, Includes: Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - elbow (Order A49784)

1шт.

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk (11 x 2 mm) (Not shown)

1шт.
