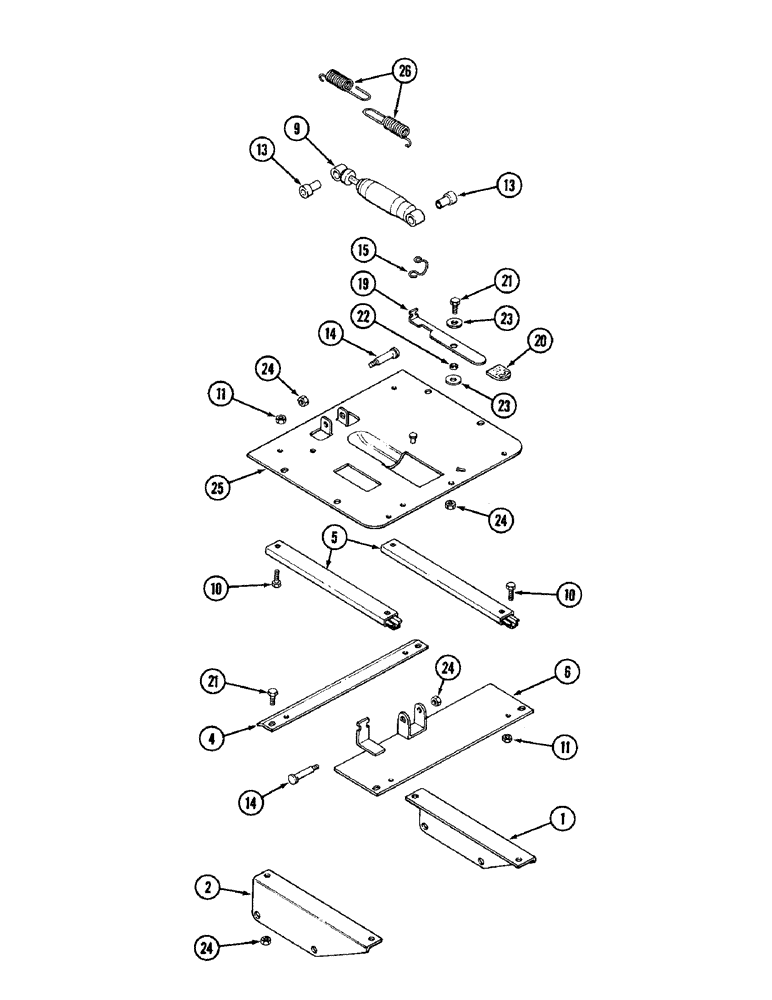

Запчасти Case IH 1896 (9-360) - CLOTH SEAT, WITH ISOLATOR (09) - CHASSIS/ATTACHMENTS

A177452

SEAT

AND SUSPENSION ASSEMBLY - (Continued from Figure 9-358), Includes: Ref. 1 - 26

1шт.

1

A48349

ADAPTER

- slide, left

1шт.

2

A48350

ADAPTER

- slide, right

1шт.

4

A48357

BAR

- adapter, slide

1шт.

5

A49512

SLIDE

ASSEMBLY - isolator

1шт.

6

A48359

BRACKET

- lower

1шт.

9

A48355

SHOCK ABSORBER

- isolator

1шт.

10

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - hex, 5/16 NC x 7/8 inch

8шт.

11

131-464

LOCK NUT,5/16"-18, G8

NUT - hex, 5/16 inch NC

8шт.

13

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

14

A45056

STEP BOLT

BOLT - shoulder, shock absorber

2шт.

15

A48351

SPRING

- isolator

1шт.

19

A48352

LATCH

- isolator

1шт.

20

A48353

CAP

- latch, isolator

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

22

A48224

BUSHING

SPACER - latch

1шт.

23

A45519

WASHER

- latch (Order A45110 and A45116)

2шт.

24

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, 3/8 inch NC

5шт.

25

A48354

PLATE

- top

1шт.

26

A48356

SPRING

- shock absorber

1шт.
