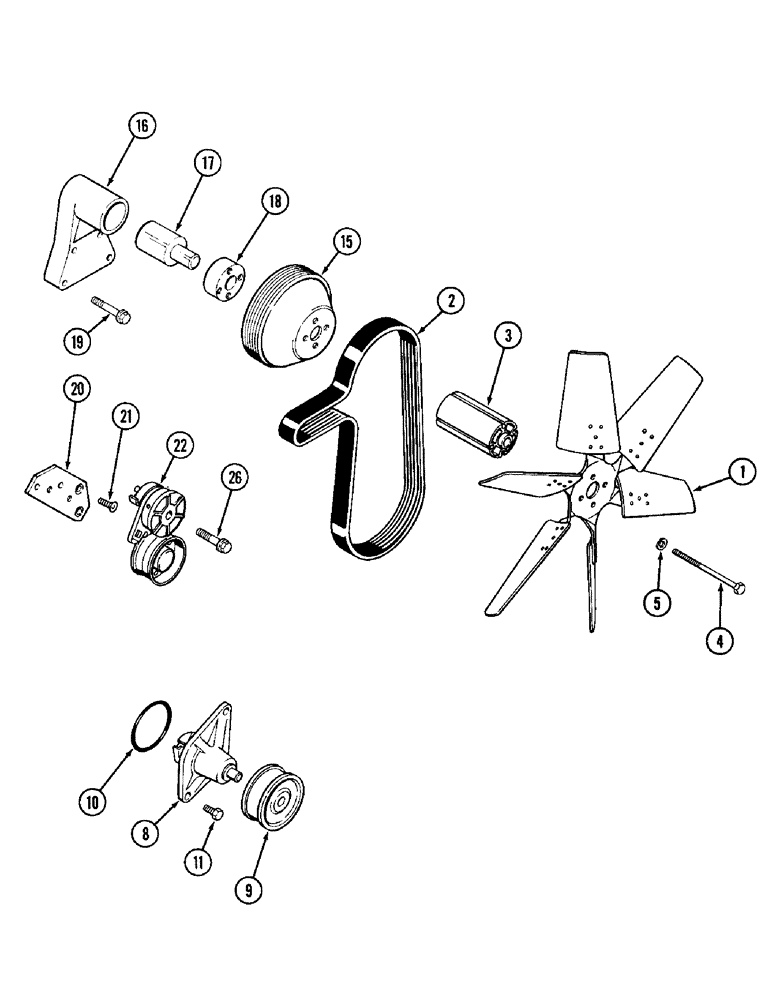

Запчасти Case IH 1896 (2-06) - FAN AND WATER PUMP SYSTEM, 6T-590 DIESEL ENGINE (02) - ENGINE

1

A172812

FAN

- engine (Replaces A171569)

1шт.

2

J902309

V-BELT,3.56 mm W x 1582.00 mm L, 8 Ribs

Fan, Replaces J903099 3.56 mm W x 1582.00 mm L, 8 Ribs

1шт.

3

A172587

SPACER

- fan

1шт.

4

827-8150

BOLT,Hex, M8 x 1.25 x 150mm, Cl 10.9

- hex, M8 x 150 mm

4шт.

5

H426775

WASHER

- flat, hardened

4шт.

AR77471

REMAN-WATER PUMP

PUMP ASSEMBLY - water (Remanufactured)

1шт.

J286278R

REMAN-WATER PUMP

1896 Prior To S/N 17895000, Replaces P/N A77471 & AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER - pump (Use this number when returning pump core for credit)

1шт.

A77471

PUMP, WATER

PUMP KIT - water, Includes: Ref. 8 - 10

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

1896 Prior To S/N 17895000, Replaces P/N A77471 & AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water (Reference no. J903749)

1шт.

9

NSS

NOT SOLD SEPARAT

PULLEY - water pump (Order A77471) (Reference no. J903657)

1шт.

10

A30395

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

- sealing (Replaces J903297)

1шт.

11

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

15

J902710

PULLEY

- fan

1шт.

16

J908270

SUPPORT

BRACKET ASSEMBLY - fan pulley (Replaces J907070), Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - bearing (Reference no. J908164)

1шт.

18

NSS

NOT SOLD SEPARAT

HUB - pulley mounting (Reference no. J901364)

1шт.

19

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

SCREW - flanged, hex, M8 x 63 mm

4шт.

20

J904548

BRACKET

- tensioner mounting

1шт.

21

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, M8 x 25

2шт.

22

J908163

BELT TENSIONER

TENSIONER ASSEMBLY - belt (Replaces J904370)

1шт.

26

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

- flanged, hex, M10 x 62 mm

1шт.
