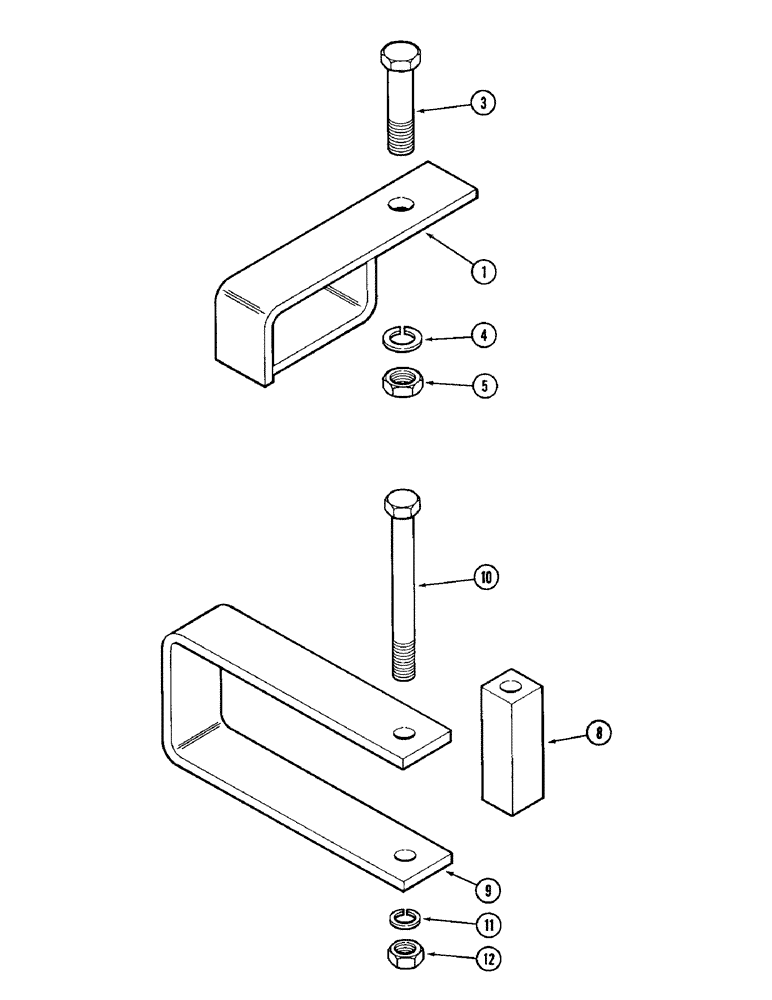

Запчасти Case IH 1896 (9-342) - IMPLEMENT SAFETY CHAIN SUPPORT (09) - CHASSIS/ATTACHMENTS

A169123

SUPPORT KIT - safety chain (Order components), Includes: Ref. 1 - 12

1шт.

1

A166390

RETAINER

- spring, support

1шт.

3

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

4

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

25-1612

NUT,3/4"-10, G5, Hvy

- heavy hex, 3/4 inch NC

1шт.

8

A166965

BLOCK

- clevis

1шт.

9

A165682

CLEVIS

- safety chain

1шт.

10

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

11

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

25-1610

NUT,5/8"-11, G5, Hvy

- heavy hex, 5/8 inch NC

1шт.
