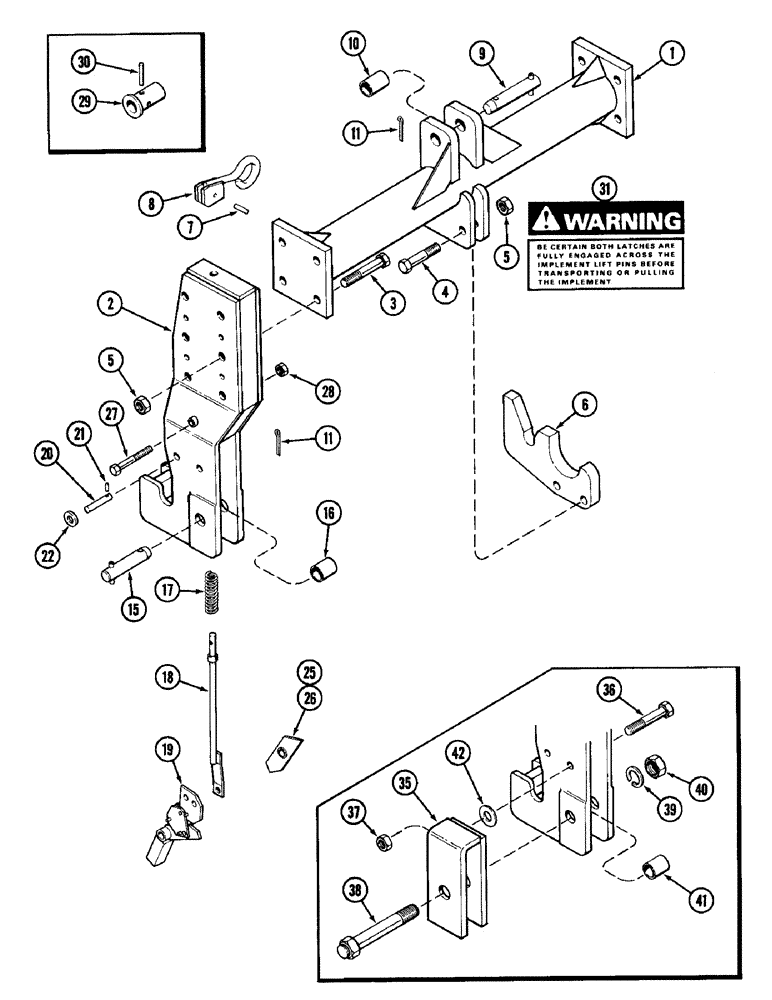

Запчасти Case IH 1896 (9-336) - QUICK HITCH COUPLER, CATEGORY II AND III, WITH OFFSET FRAME (09) - CHASSIS/ATTACHMENTS

A66281

NO LONGER SERVICED

ATTACHMENT - coupler (Machinery item), Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - upper arm tube (Order A66281) (Reference No. A44593)

1шт.

2

A44594

HITCH ASSY

HITCH - lower arm bracket, right

1шт.

2

A44595

HITCH ASSY

HITCH - lower arm bracket, left (Right shown)

1шт.

3

113-736

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

8шт.

4

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

5

129-108

NUT,3/4"-10, G5

10шт.

6

A44600

PLATE

LUG - hitch, upper arm

1шт.

7

138-2067

PIN,3/16" x 1", Coiled

2шт.

8

A44472

HANDLE

- release, hitch

2шт.

9

A45463

PIN

- upper, hitch

1шт.

10

A44474

SLEEVE

- upper, draft arm pin

1шт.

11

T50113

PIN

- clinch, hitch pin

3шт.

15

A45462

PIN

- coupler arm, lower

2шт.

16

A43542

SLEEVE

- coupler arm (For category II tractors)

2шт.

17

A45461

SPRING

- release rod

2шт.

18

A44598

ROD

- handle to tripping devices (Used with handle, Serial Range: facing-rear)

2шт.

18

A45086

ROD

- handle to tripping devices (Used with handle facing each other)

2шт.

19

A45020

LEVER

- lock, RH

1шт.

19

A45019

LEVER

- lock, LH (Right shown)

1шт.

20

A45459

PIN

- lever trip ratchet

2шт.

21

138-2055

PIN,3/16" x 1 1/2", Coiled

2шт.

22

195-41

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 1/8 inch (17 x 33 x 3 mm)

2шт.

25

A44470

LEVER

- lower trip ratchet, RH

1шт.

26

A44471

LEVER

- lower trip ratchet, LH

1шт.

27

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

28

131-165

NUT,1/2"-13, GA

NUT - Gripco crown lock, 1/2 inch NC

2шт.

29

T32995

ADAPTER

- hitch coupler

2шт.

30

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

31

321-3339

DECAL

- implement pin warning

2шт.

31

321-5790

DECAL

- implement pin warning (French language)

1шт.

A66283

KIT

- hitch adapter (Machinery item) (Use with A66281 hitch coupler), Includes: Ref. 35 - 42

1шт.

35

A66284

BRACKET

- adapter

2шт.

36

113-736

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

2шт.

37

131-385

LOCK NUT,3/4"-10, GA

NUT - Gripco Toplock, 3/8 inch NC

2шт.

38

A66285

BOLT

- attaching, adapter

2шт.

39

192-33

LOCK WASHER,1 1/8"

1 1/8"

2шт.

40

129-131

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.

41

A43542

SLEEVE

- coupler arm (Used with A66281 hitch to prevent coupler arm collapse)

2шт.

42

195-109

WASHER,3/4"

- flat, 3/16 x 2 x 1/8 inch (21 x 51 x 3 MM)

2шт.
