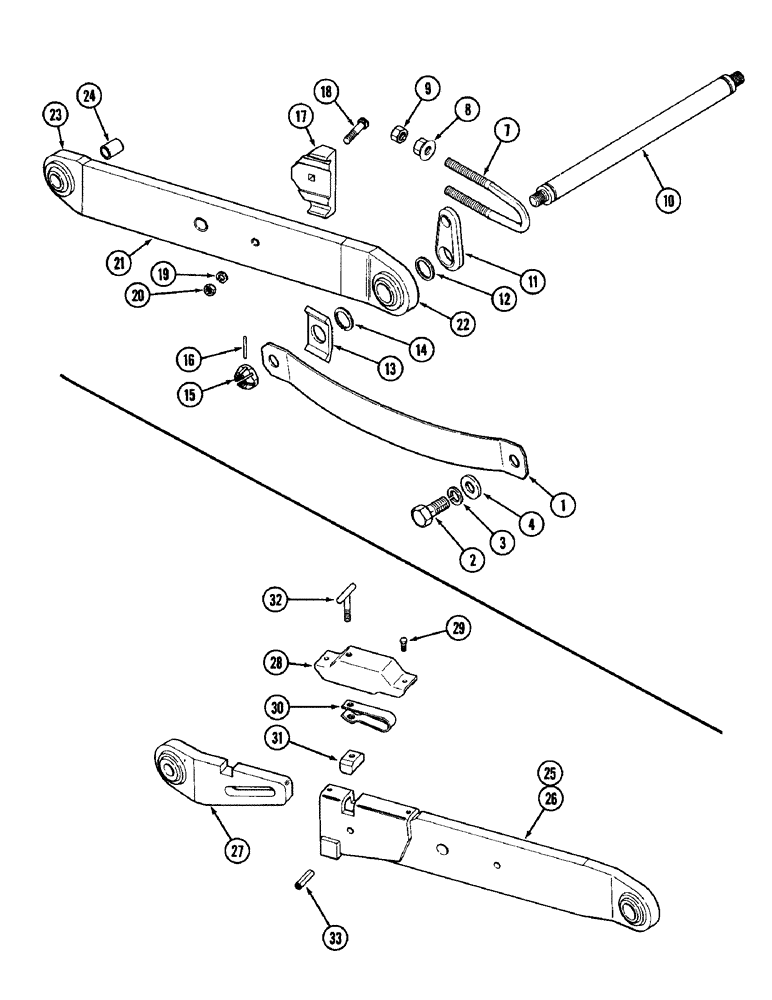

Запчасти Case IH 1896 (9-330) - HITCH SPRINGS, DRAFT ARMS AND SHAFT (09) - CHASSIS/ATTACHMENTS

1

A145753

SPRING

- sensing

2шт.

2

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 1 NC x 2-1/2 inch

2шт.

3

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

4

195-2100

WASHER,1 1/32" x 2" x .238"

- flat, 1-1/32 x 2 x 1/4 inch (26 x 51 x 6 MM)

2шт.

7

A162689

BOLT

U-BOLT - 3/4 inch NC

2шт.

8

131-935

FLANGE NUT,Flg, 3/4"-10, G8

- hex flange, 3/4 inch NC

4шт.

9

131-1338

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

4шт.

10

A176923

BEAM

SHAFT - cross, draft arm and sending spring

1шт.

11

A167660

LINK

- support, shaft

2шт.

12

A167661

WASHER

- spacer, draft arm

2шт.

13

A167662

PLATE

SPACER - spring

2шт.

14

A167663

RING

- snap

2шт.

15

A33404

NUT

- cross shaft

2шт.

16

138-2014

PIN,3/16" x 1 7/8", Coiled

2шт.

17

A162756

BLOCK

- sway, draft arm

2шт.

18

111-504

CARRIAGE BOLT,Short NK, 1/2"-13 x 2 1/2", G5

BOLT - round head square neck, 1/2 NC x 2-1/2 inch

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

21

A167794

ARM

- draft, hitch, Includes: Ref. 22 and 23

2шт.

22

A167796

TRUNNION

SOCKET ASSEMBLY - ball, arm

1шт.

23

A61922

ARM

SOCKET ASSEMBLY - ball, arm (Replaces A161922)

1шт.

24

A33498

ADAPTER

- lower hitch pin (Category II to category I)

2шт.

25

A164991

ARM

ASSEMBLY - hitch draft, LH (Right hand shown), telescoping, Includes: Ref. 27 - 33

1шт.

26

A164990

ARM

ASSEMBLY - hitch draft, RH, telescoping, Includes: Ref. 27 - 33

1шт.

27

A48913

ARM

END - draft arm, left

1шт.

27

A48914

ARM

END - draft arm, right

1шт.

28

A48915

COVER

- latch, draft arm

1шт.

29

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

30

A48917

SPRING

- latch, hitch

1шт.

31

A48918

LATCH

- block, hitch

1шт.

32

A48916

HANDLE

- latch, hitch

1шт.

33

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

Hitch 1/2" x 2", Coiled

1шт.
