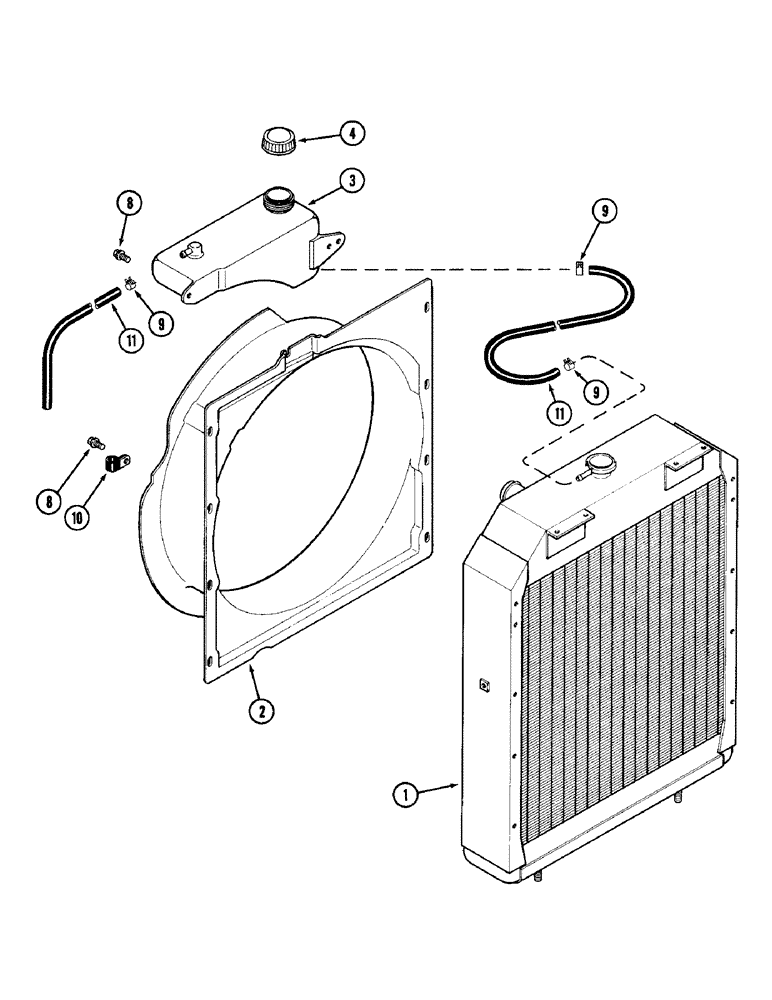

Запчасти Case IH 1896 (2-04) - COOLANT RECOVERY BOTTLE, 6T-590 DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR - cooling system (See figure 2-02)

1шт.

2

REF

INSTRUCTION

SHROUD - radiator (See figure 2-02)

1шт.

3

A171804

BOWL

BOTTLE - recovery, coolant

1шт.

4

A171775

CAP

- recovery

1шт.

8

REF

INSTRUCTION

SCREW - retainer (See ref 21, figure 2-02)

1шт.

9

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - hose

3шт.

10

49885

CLAMP

CLIP - hose

3шт.

11

A172913

HOSE,7.50 mm ID, 8.30 mm ID x 950.00 mm, SAE 30R6 per J30

- Recovery drain (Replaces A172913) 7.50 mm ID, 8.30 mm ID x 950.00 mm, SAE 30R6 per J30

2шт.
