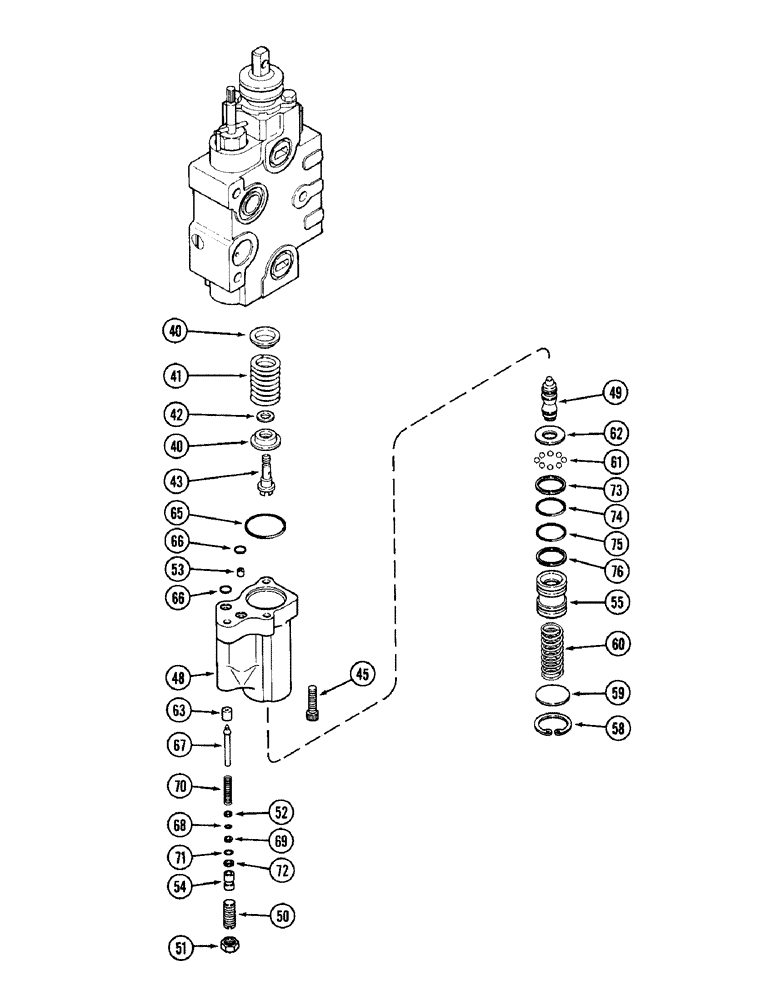

Запчасти Case IH 1896 (8-302) - REMOTE VALVE BODY ASSEMBLY, TWO CIRCUIT & ADD ON FOR THIRD & FOURTH CIRCUIT, W/O LOAD CHECK (CONTD) (08) - HYDRAULICS

A169029

VALVE

BODY ASSEMBLY - remote valve (Continued from Figure: 8-300), Includes: Ref. 40 - 76 and 2 - 36 on Figure 8-300

1шт.

40

A47197

RETAINER

- spring

2шт.

41

A47177

SPRING

- centering

1шт.

42

A47199

BUSHING

SPACER - detent

1шт.

43

A47193

COUPLING, BREAK AWAY

COUPLER - detent

1шт.

45

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - socket head cap, 1/4 NC x 1 inch

3шт.

A48940

KIT

HOUSING KIT - detent, Includes: Ref. 48 - 76

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - detent, Includes: Ref. 49 - 76

1шт.

49

A48928

WASHER

SHAFT - detent

1шт.

50

A47173

SCREW,3/8" - 24 x 0.96"

- adjusting

1шт.

51

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8 inch NF

1шт.

52

A48935

WASHER

- poppet

1шт.

53

A47658

PLUG

- orifice

1шт.

54

A48936

GOVERNOR

PISTON - regulator

1шт.

55

A48932

PISTON

- kickout

1шт.

58

A30975

SNAP RING,1.188", Int, #118

1шт.

59

A48933

RING

- retainer, detent

1шт.

60

A48934

SPRING

- detent

1шт.

61

211-6

BALL,7/32" Dia

BEARING - ball, 7/32 inch (6 mm) diameter

8шт.

62

A48931

WASHER

- guide

1шт.

63

A46924

SEAT

- pilot

1шт.

A48942

KIT

SEAL KIT - detent, Includes: Ref. 65 - 76

1шт.

65

A59066

O-RING,1.239" ID x 1.379" OD

- housing

1шт.

66

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, detent

2шт.

67

NSS

NOT SOLD SEPARAT

POPPET - detent (Reference No. A48958)

1шт.

68

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- poppet

1шт.

69

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- backup (Replaces A52387)

1шт.

70

NSS

NOT SOLD SEPARAT

SPRING - relief (Reference No. A48961)

1шт.

71

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- piston

1шт.

72

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

73

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup

1шт.

74

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- piston

1шт.

75

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- piston

1шт.

76

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.
