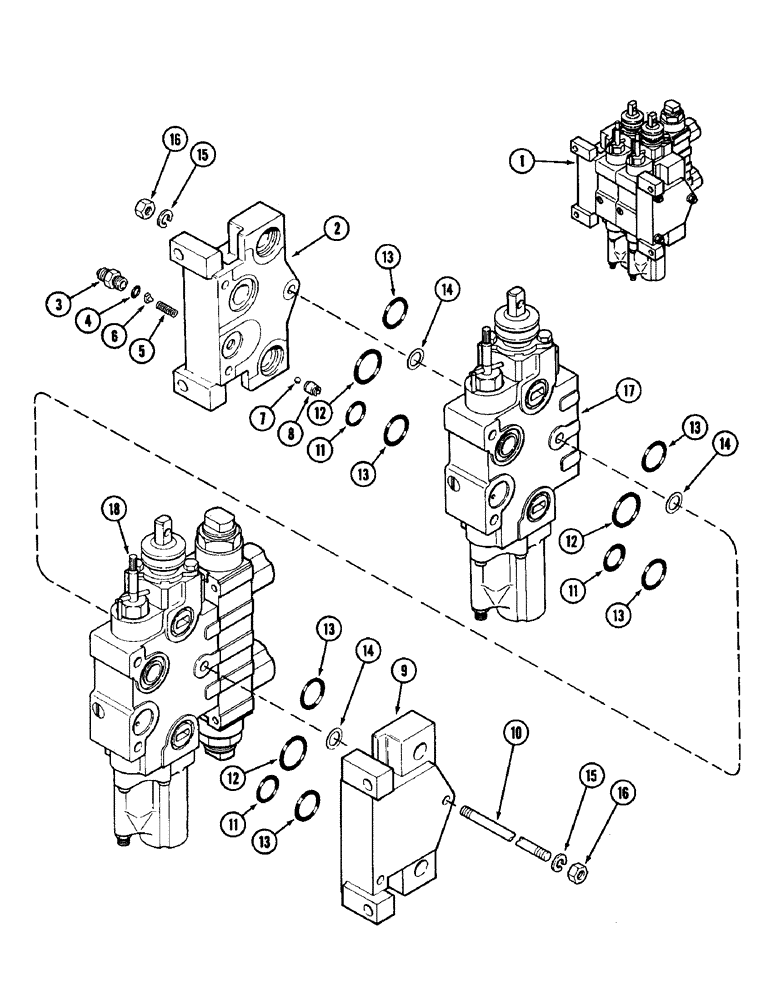

Запчасти Case IH 1896 (8-298) - REMOTE HYDRAULICS, CONTROL VALVE ASSEMBLY, TWO SECTION WITH LOAD CHECK (08) - HYDRAULICS

1

A177636

TUBE ASSY.

VALVE ASSEMBLY - remote, 2 spool, Includes: Ref. 2 - 8

1шт.

2

A47169

COVER

ASSEMBLY - inlet

1шт.

3

A47185

FITTING

- inlet

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 10 x 2 mm)

1шт.

5

A47176

SPRING

- valve

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-257

BALL,1/4" Dia

(6 mm) 1/4" Dia

1шт.

8

A47202

SEAT

- valve

1шт.

9

A47113

COVER

- front

1шт.

A48919

SEAL

AND STUD KIT - valve, Includes: Ref. 10 - 16

1шт.

10

A147506

STUD

- 3/8 NC x 8 inch

3шт.

11

G34846

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

- body, 3/4 inch (19 MM) ID

3шт.

12

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- body, 1 inch (25 MM) ID

3шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- body, 15/16 inch (24 MM) ID

6шт.

14

D77566

SHIM,.0030" Thk

Body (0.08 mm) .0030" Thk

9шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

17

REF

INSTRUCTION

BODY ASSEMBLY - valve spool (See Figure 8-284)

2шт.

18

REF

INSTRUCTION

BODY ASSEMBLY - valve spool, with load check (See Figure: 8-304)

1шт.
