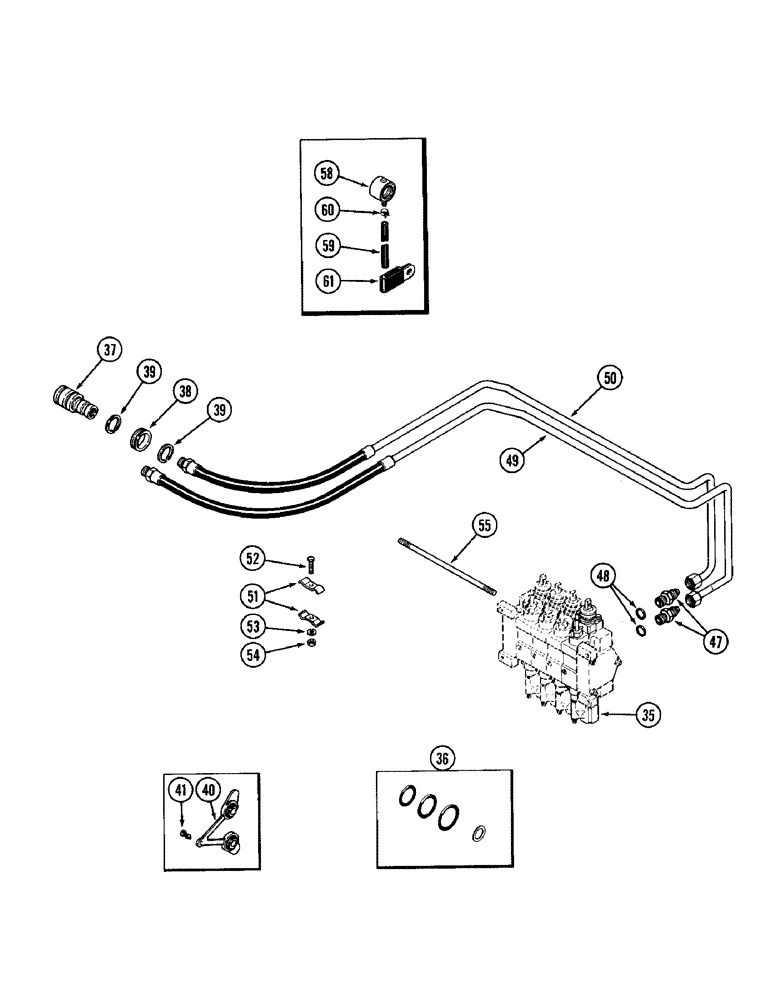

Запчасти Case IH 1896 (8-294) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER FOUR CIRCUIT (CONTINUED) (08) - HYDRAULICS

A180263

REMOTE ATTACHMENT - hydraulic, No. 4 circuit (Replaces A67589) (Machinery item) (Continued from Figure: 8-292), Includes: Ref. 35 - 61 and 1 - 32 on Figure 8-292

1шт.

35

REF

INSTRUCTION

BODY - remote valve (See Figure: 8-300)

1шт.

36

A47576

KIT

SEAL KIT - valve, with shims

1шт.

37

REF

INSTRUCTION

COUPLING - female, remote hydraulic (See page 8-312)

2шт.

38

A139805

RETAINER

- coupling

2шт.

39

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

40

A145468

PLUG

- dust, remote coupling (See Ref 58)

1шт.

41

A162364

FASTENER

- dust plug

1шт.

47

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 48

2шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 MM)

1шт.

49

A145907

HOSE

- coupling, No. 7 remote

1шт.

50

A145908

HOSE

- coupling, No. 8 remote

1шт.

51

A63323

CLAMP

- tube

2шт.

52

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

1шт.

55

A147508

STUD

- valve mounting, 3/8 NC x 11-3/4 inch

3шт.

58

A177479

CAP

- dust

2шт.

59

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

2шт.

60

A180159

CLAMP,10.29mm - 12.32mm

- hose

2шт.

61

A180154

CLAMP

- drain

1шт.
