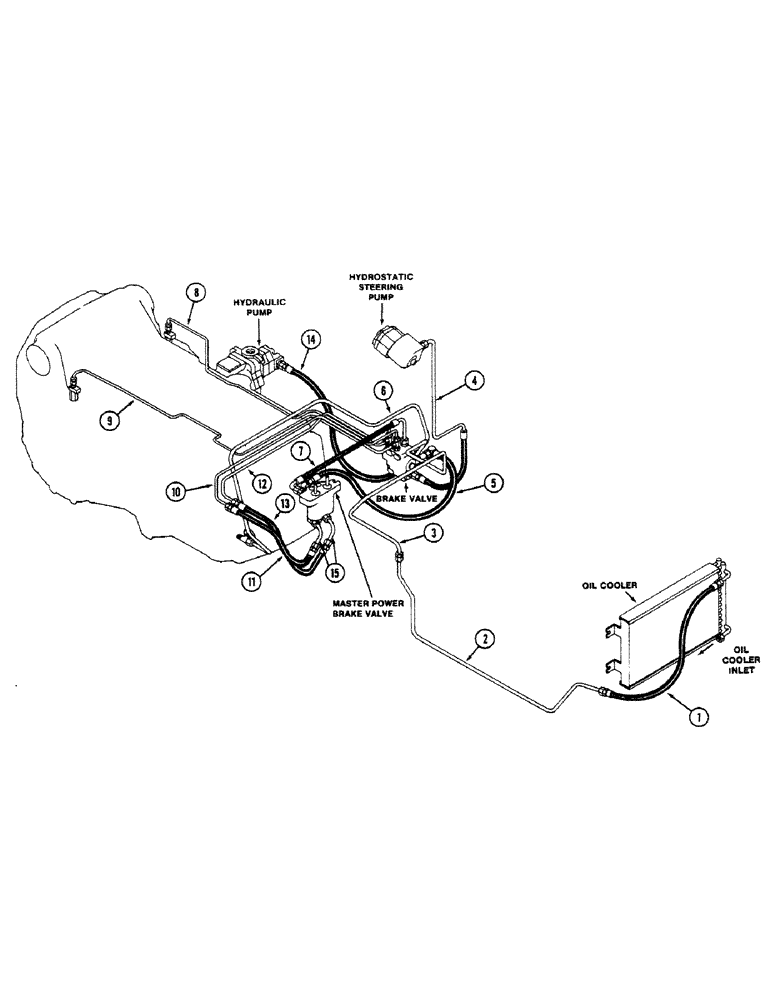

Запчасти Case IH 1896 (1-20) - PICTORIAL INDEX, BRAKE HYDRAULICS (00) - PICTORIAL INDEX

1

A176268

HOSE,12.70 mm ID x 991.00 mm, SAE 100R1

- Oil cooler outlet, Figure 5-106 12.70 mm ID x 991.00 mm, SAE 100R1

1шт.

2

A169711

TUBE

Oil Cooler Outlet Center Tube, Figure 5-106

1шт.

3

A167458

TUBE

Oil Cooler Outlet to Brake Valve Tube, Figure 5-106

1шт.

4

A166836

HYDRAULIC HOSE

Steering Pump to Brake Valve Hose, Figure 5-104

1шт.

5

A180958

HOSE,0.25" ID x 28.00", SAE J516, SAE 100R1, SAE J343, SAE J517

Master Power Brake Valve Inlet Hose, Figure 7-234 0.25" ID x 28.00", SAE J516, SAE 100R1, SAE J343, SAE J517

1шт.

6

Oil Cooler Return Tube, Figure 7-234

1шт.

7

A177847

HOSE

Master Power Brake Valve Drain Hose, Figure 7-234

1шт.

8

A166606

TUBE

Left Rear Brake Tube, Figure 7-234

1шт.

9

A166605

TUBE

Right Rear Brake Tube, Figure 7-234

1шт.

10

A166603

TUBE

Right Front Brake Tube, Figure 7-234

1шт.

11

A164950

HYDRAULIC HOSE,0.25" ID x 15.50", SAE 100R1 per SAE J517

- Right Front Brake Hose, Figure 7-234 0.25" ID x 15.50", SAE 100R1 per SAE J517

1шт.

12

A166604

TUBE

Left Front Brake Tube, Figure 7-234

1шт.

13

A164950

HYDRAULIC HOSE,0.25" ID x 15.50", SAE 100R1 per SAE J517

- Left Front Brake Hose, Figure 7-234 0.25" ID x 15.50", SAE 100R1 per SAE J517

1шт.

14

A166607

HYDRAULIC HOSE,0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

- Hydraulic pump to brake valve, Figure 7-234 0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

1шт.

15

A164949

TUBE

Front Brake Hose to Master Brake Valve Tube, Figure 7-234

1шт.
